Manufacturer Part Number: | FDMS2572 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 24010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 150V 4.5A POWER56 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDMS2572 Datasheet |
Internal Part Number | 898-FDMS2572 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Voltage Switches for Power Processing | |
Featured Product | Cloud Systems Computing Mid- and Low-Voltage MOSFETs | |
PCN Design/Specification | FDMS Wire Bond Material 16/May/2007 | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | UltraFET™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 150V | |
Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 27A (Tc) | |
Rds On (Max) @ Id, Vgs | 47 mOhm @ 4.5A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) @ Vgs | 43nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 2610pF @ 75V | |
Power - Max | 2.5W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

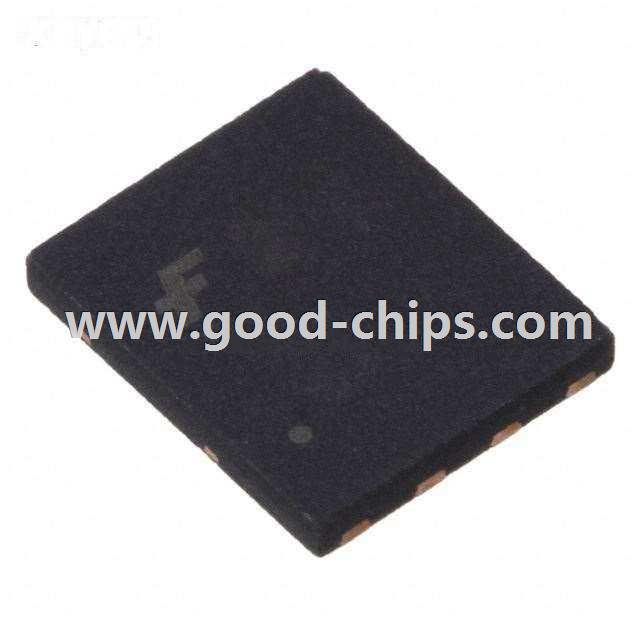

Package / Case | 8-MLP, Power56 | |
Supplier Device Package | Power56 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDMS2572 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDMS2572 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMS2572 is new and unused, you can buy FDMS2572 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMS2572.
