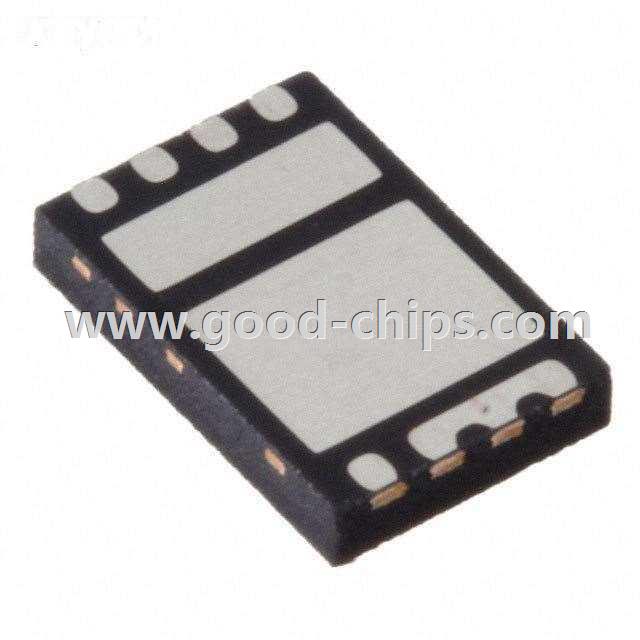

| Manufacturer Part Number: | FDML7610S |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 12A/17A 8-MLP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDML7610S Datasheet |
| Internal Part Number | 898-FDML7610S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Design Change 03/Aug/2015 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 12A, 17A | |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 12A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 28nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1750pF @ 15V | |
| Power - Max | 800mW, 900mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-WDFN Exposed Pad | |
| Supplier Device Package | 8-MLP (3x4.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDML7610S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDML7610S is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDML7610S is new and unused, you can buy FDML7610S Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDML7610S.
