Manufacturer Part Number: | FDMC8321LDC |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 40V 27A POWER33 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDMC8321LDC Datasheet |
Internal Part Number | 898-FDMC8321LDC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | PowerTrench® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 40V | |
Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 108A (Tc) | |
Rds On (Max) @ Id, Vgs | 2.5 mOhm @ 27A, 10V | |
Vgs(th) (Max) @ Id | 3V @ 250µA | |
Gate Charge (Qg) @ Vgs | 60nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 3965pF @ 20V | |
Power - Max | 2.9W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

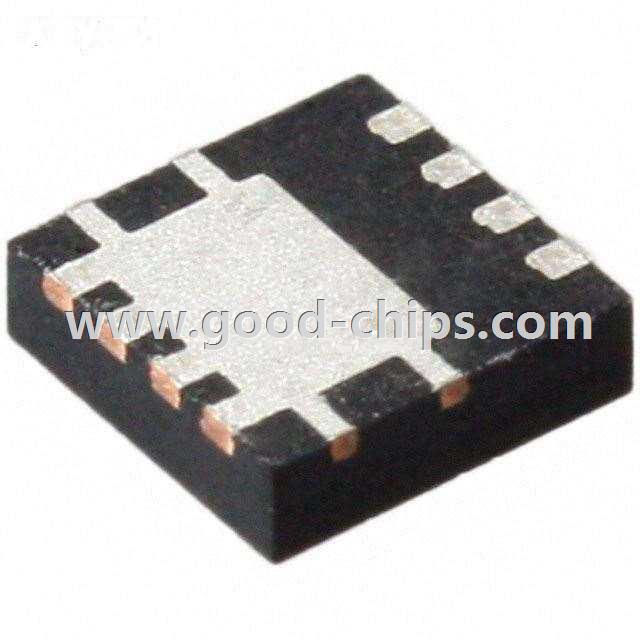

Package / Case | 8-PowerTDFN | |
Supplier Device Package | 8-PQFN (3.3x3.3), Dual Cool 33 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDMC8321LDC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDMC8321LDC is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMC8321LDC is new and unused, you can buy FDMC8321LDC Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMC8321LDC.
