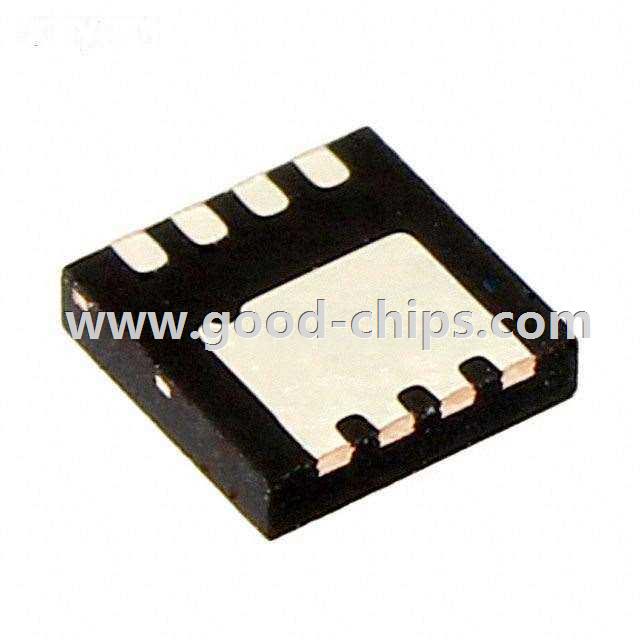

Manufacturer Part Number: | FDMC6679AZ |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 30V POWER33 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDMC6679AZ Datasheet |
Internal Part Number | 898-FDMC6679AZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Wafer 6/8 Inch Addition 16/Jun/2014 Mult Device Assembly Site Chg 18/Feb/2016 | |
Online Catalog | P-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | PowerTrench® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta), 20A (Tc) | |
Rds On (Max) @ Id, Vgs | 10 mOhm @ 11.5A, 10V | |
Vgs(th) (Max) @ Id | 3V @ 250µA | |
Gate Charge (Qg) @ Vgs | 91nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 3970pF @ 15V | |
Power - Max | 2.3W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | 8-PowerWDFN | |
Supplier Device Package | 8-MLP (3.3x3.3) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDMC6679AZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDMC6679AZ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMC6679AZ is new and unused, you can buy FDMC6679AZ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMC6679AZ.
