Manufacturer Part Number: | FDJ1032C |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N/P-CH 20V 3.2A/2.8A SC75 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDJ1032C Datasheet |
Internal Part Number | 898-FDJ1032C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 14/Mar/2011 | |
PCN Design/Specification | Mold Compound 27/March/2008 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | Fairchild Semiconductor | |
Series | PowerTrench® | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
FET Type | N and P-Channel | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 20V | |
Current - Continuous Drain (Id) @ 25°C | 3.2A, 2.8A | |
Rds On (Max) @ Id, Vgs | 90 mOhm @ 3.2A, 4.5V | |
Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 3nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 200pF @ 10V | |
Power - Max | 900mW | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

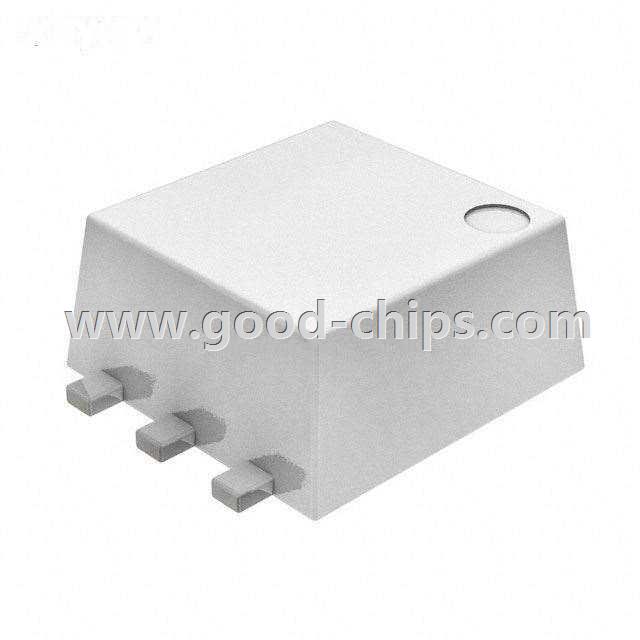

Package / Case | SC75-6 FLMP | |
Supplier Device Package | SC75-6 FLMP | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDJ1032C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDJ1032C is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDJ1032C is new and unused, you can buy FDJ1032C Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDJ1032C.
