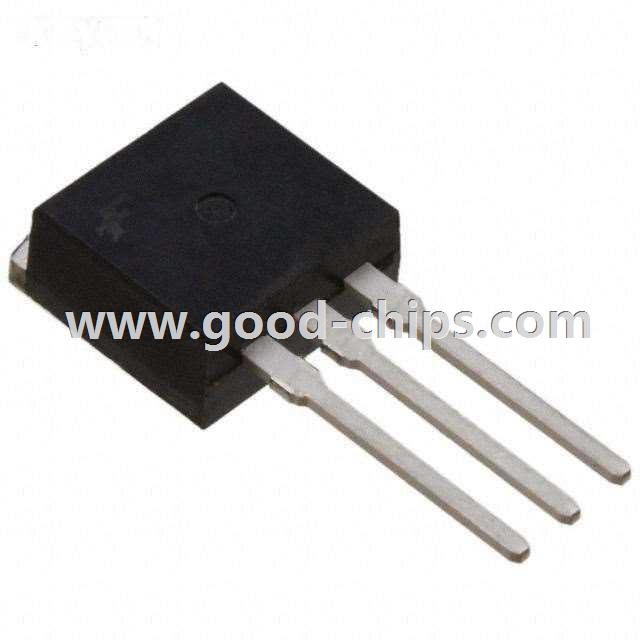

Manufacturer Part Number: | FDI030N06 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9845 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 60V 120A I2PAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FDI030N06 Datasheet |
Internal Part Number | 898-FDI030N06 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | PowerTrench® | |
Packaging | Tube | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 60V | |
Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | |
Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 75A, 10V | |
Vgs(th) (Max) @ Id | 4.5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 151nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 9815pF @ 25V | |
Power - Max | 231W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
Supplier Device Package | I2PAK (TO-262) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FDI030N06 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FDI030N06 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDI030N06 is new and unused, you can buy FDI030N06 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDI030N06.
