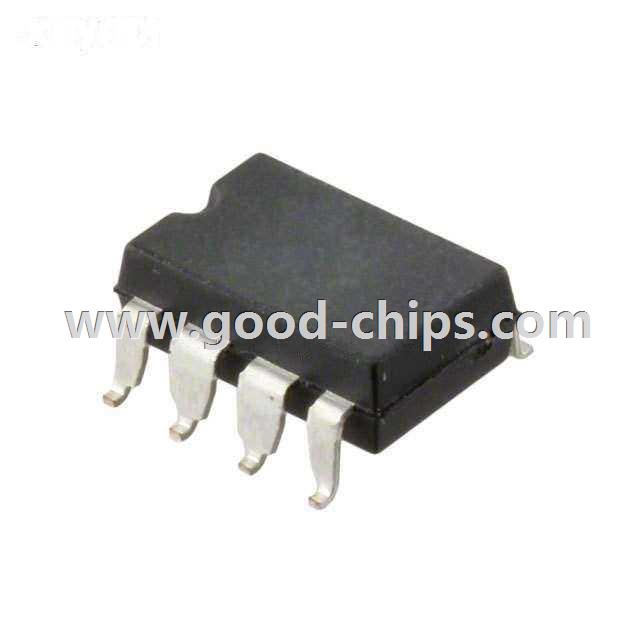

| Manufacturer Part Number: | FDA217S |
|---|---|
| Manufacturer: | IXYS Integrated Circuits Division |
| Product Category: | Isolators - Gate Drivers |
| Available Quantity: | 9534 Pieces |
| Unit Price: | Quote by Email |
| Description: | Gate Driver Optical Coupling 3750Vrms 2 Channel 8-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDA217S Datasheet |
| Internal Part Number | 898-FDA217S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | FDA217 Dual Photovoltaic MOSFET Driver | |
| Online Catalog | Gate Drivers | |
| Category | Isolators | |
| Family | Isolators - Gate Drivers | |
| Manufacturer | IXYS Integrated Circuits Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Technology | Optical Coupling | |
| Number of Channels | 2 | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | - | |
| Propagation Delay tpLH / tpHL (Max) | 2ms, 0.5ms | |
| Pulse Width Distortion (Max) | - | |
| Rise / Fall Time (Typ) | - | |
| Current - Output High, Low | - | |
| Current - Peak Output | - | |
| Voltage - Forward (Vf) (Typ) | 1.26V | |
| Current - DC Forward (If) (Max) | 5mA | |
| Voltage - Supply | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD, Gull Wing | |
| Supplier Device Package | 8-SMD | |
| Approvals | EN, IEC, TUV | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDA217S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDA217S is in stock for immediate shipping now. We are the distributor of IXYS Integrated Circuits Division all series components. The condition of FDA217S is new and unused, you can buy FDA217S IXYS Integrated Circuits Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDA217S.
