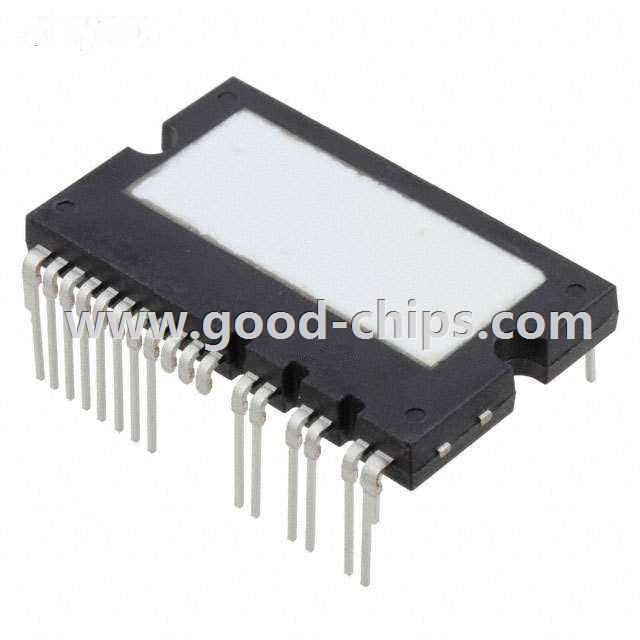

FBA42060

FBA42060
Manufacturer Part Number:FBA42060
Manufacturer:
Product Category:Power Driver Modules
Available Quantity:9116 Pieces
Unit Price:Quote by Email
Description:Power Driver Module IGBT 1 Phase 600V 20A 23-DIP Module
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FBA42060 Datasheet
FBA42060´s Parameters
Internal Part Number898-FBA42060
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Design/SpecificationMultiple Specification Changes 21/Jan/2014
Marking Chg 04/May/2016
CategoryDiscrete Semiconductor Products
FamilyPower Driver Modules
ManufacturerFairchild Semiconductor
Series-
Part StatusActive
TypeIGBT
Configuration1 Phase
Current20A
Voltage600V
Voltage - Isolation2000Vrms
Package / Case23-DIP Module
Standard Package 12
Weight0.001 KG
ApplicationEmail for details
Replacement PartFBA42060
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FBA42060 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FBA42060 is new and unused, you can buy FBA42060 Fairchild Semiconductor with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FBA42060.
