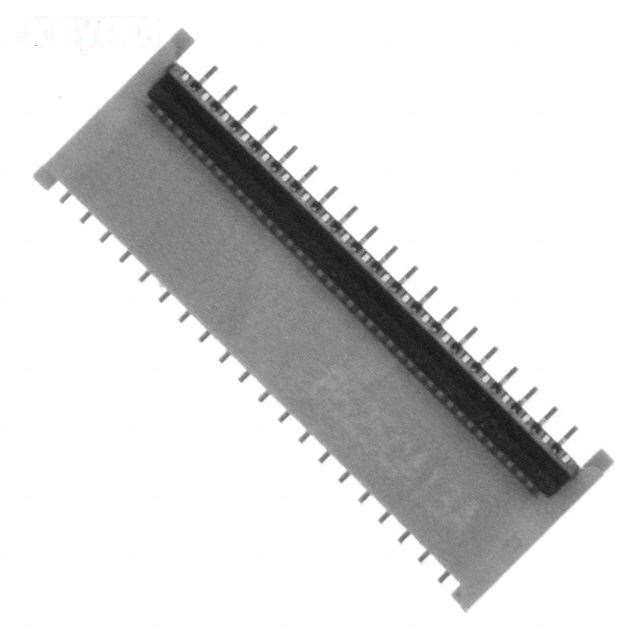

| Manufacturer Part Number: | FB8S039JA1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9138 Pieces |
| Unit Price: | Quote by Email |
| Description: | 39 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FB8S039JA1 Datasheet |
| Internal Part Number | 898-FB8S039JA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | FB8 Series Connectors | |
| Online Catalog | FB8 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | JAE Electronics | |
| Series | FB8 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top | |
| Number of Positions | 39 | |
| Pitch | 0.012" (0.30mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.20mm | |
| Height Above Board | 0.047" (1.20mm) | |
| Locking Feature | Rotary Lock | |
| Cable End Type | Tapered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
| Features | Zero Insertion Force (ZIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.35A per Contact | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FB8S039JA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FB8S039JA1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of FB8S039JA1 is new and unused, you can buy FB8S039JA1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FB8S039JA1.
