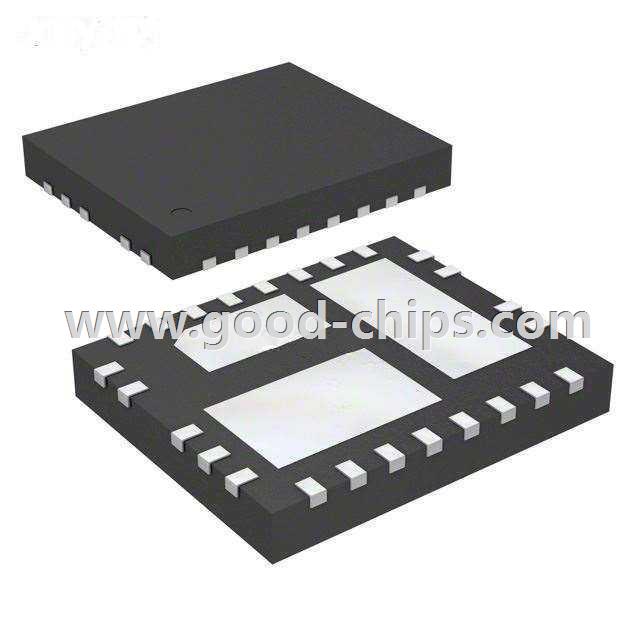

 TinyBuck.jpg)
| Manufacturer Part Number: | FAN2108MPX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 8A 25-WQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FAN2108MPX Datasheet |
| Internal Part Number | 898-FAN2108MPX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Fairchild Semiconductor | |
| Series | TinyBuck® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 24V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 19.2V | |
| Current - Output | 8A | |
| Frequency - Switching | 300kHz ~ 600kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -10°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 25-WQFN Exposed Pad | |
| Supplier Device Package | 25-MLP (5x6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FAN2108MPX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FAN2108MPX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FAN2108MPX is new and unused, you can buy FAN2108MPX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FAN2108MPX.
