| Manufacturer Part Number: | FAN1581M15X |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 5A TO-263 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FAN1581M15X Datasheet |
| Internal Part Number | 898-FAN1581M15X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 1.5V | |
| Current - Output | 5A | |
| Voltage - Dropout (Typical) | 0.4V @ 5A | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 7V | |
| Current - Limit (Min) | 5.2A | |
| Operating Temperature | 0°C ~ 125°C | |
| Mounting Type | Surface Mount | |

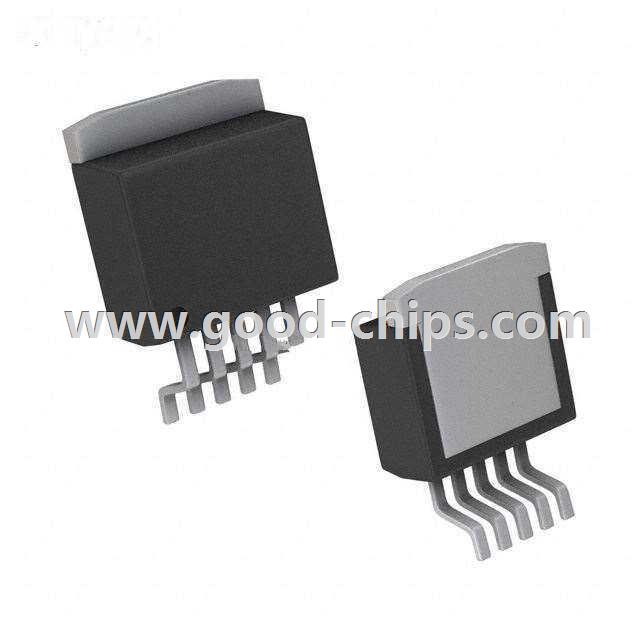

| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | |
| Supplier Device Package | TO-263 | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FAN1581M15X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FAN1581M15X is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FAN1581M15X is new and unused, you can buy FAN1581M15X Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FAN1581M15X.
