| Manufacturer Part Number: | FA1-NBSP-C01-1 |
|---|---|
| Manufacturer: | Amphenol-RF Division |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

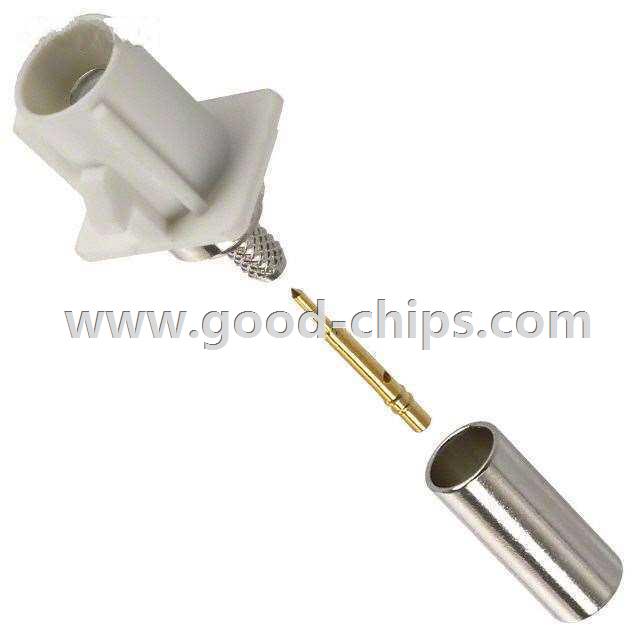

| Description: | SMB, Fakra Connector Plug, Male Pin 50 Ohm Panel Mount, Square Flange - No Holes Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FA1-NBSP-C01-1 Datasheet |
| Internal Part Number | 898-FA1-NBSP-C01-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | FAKRA Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Amphenol-RF Division | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | SMB, Fakra | |
| Connector Type | Plug, Male Pin | |
| Contact Termination | Crimp | |
| Shield Termination | Crimp | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Square Flange - No Holes | |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 | |
| Fastening Type | Locking Ramp | |
| Frequency - Max | 4GHz | |
| Features | Code B | |
| Housing Color | Cream | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 100°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FA1-NBSP-C01-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FA1-NBSP-C01-1 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of FA1-NBSP-C01-1 is new and unused, you can buy FA1-NBSP-C01-1 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FA1-NBSP-C01-1.
