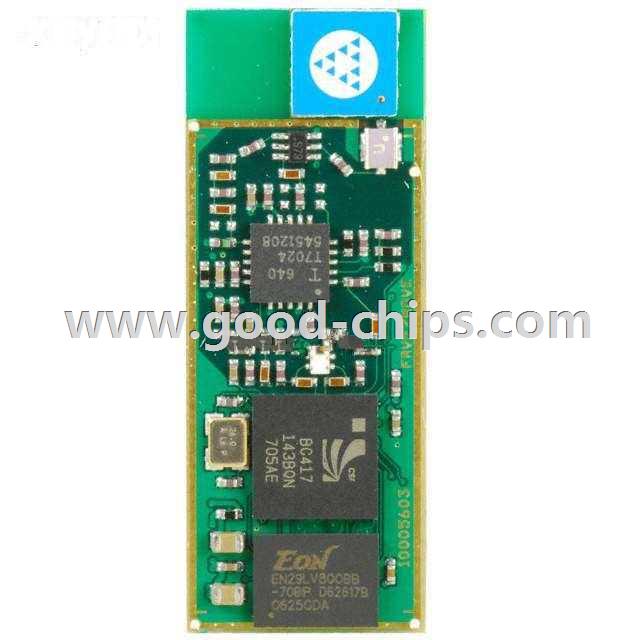

| Manufacturer Part Number: | F2M03GXA-S01 |
|---|---|
| Manufacturer: | Free2Move |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD BLUETOOTH CHIP ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | F2M03GXA-S01 Datasheet |
| Internal Part Number | 898-F2M03GXA-S01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | F2M03(GS, ALA, MLA) Mar/2013 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Free2Move | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v2.0 + EDR, Class 1, 2 and 3 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 3Mbps | |
| Power - Output | 18dBm | |
| Sensitivity | -89dBm | |
| Serial Interfaces | I²C, PIO, SPI, UART, USB | |
| Antenna Type | Integrated, Chip | |
| Memory Size | - | |
| Voltage - Supply | 3.1 V ~ 3.6 V | |
| Current - Receiving | - | |
| Current - Transmitting | - | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | F2M03GXA-S01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
F2M03GXA-S01 is in stock for immediate shipping now. We are the distributor of Free2Move all series components. The condition of F2M03GXA-S01 is new and unused, you can buy F2M03GXA-S01 Free2Move with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for F2M03GXA-S01.
