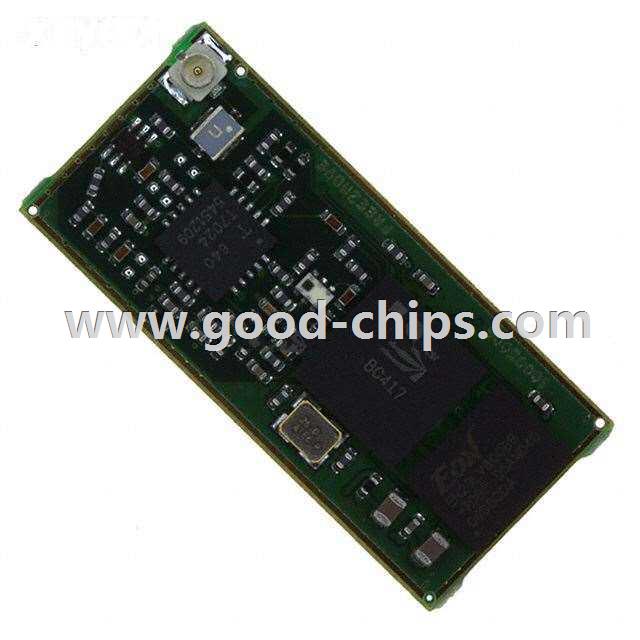

Manufacturer Part Number: | F2M03GX-S04 |
---|---|
Manufacturer: | Free2Move |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD BLUETOOTH CHIP ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | F2M03GX-S04 Datasheet |
Internal Part Number | 898-F2M03GX-S04 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Free2Move | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Discontinued | |
RF Family/Standard | Bluetooth | |
Protocol | Bluetooth v2.0 + EDR | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 3Mbps | |
Power - Output | 18dBm | |
Sensitivity | -89dBm | |
Serial Interfaces | I²C, SPI, UART, USB | |
Antenna Type | Integrated, Chip | |
Memory Size | - | |
Voltage - Supply | 3.1 V ~ 3.6 V | |
Current - Receiving | 38mA | |
Current - Transmitting | 250mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | F2M03GX-S04 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
F2M03GX-S04 is in stock for immediate shipping now. We are the distributor of Free2Move all series components. The condition of F2M03GX-S04 is new and unused, you can buy F2M03GX-S04 Free2Move with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for F2M03GX-S04.
