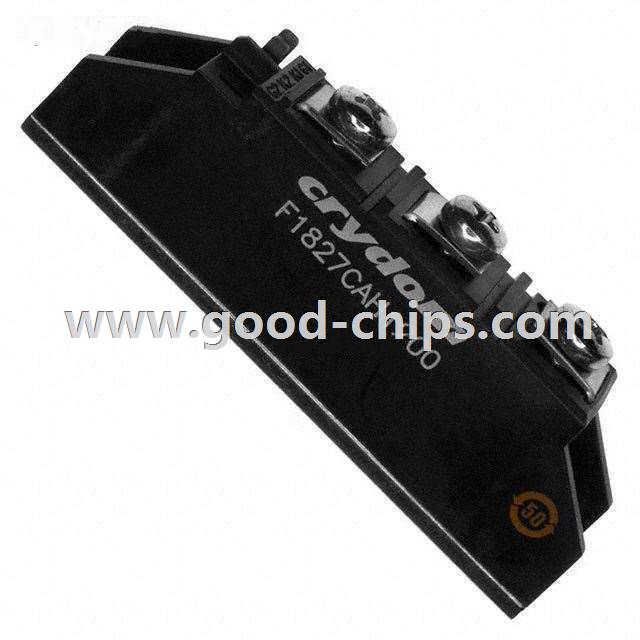

| Manufacturer Part Number: | F1827CAH1200 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1200V 25A (DC) Common Anode - SCR/Diode Chassis Mount Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | F1827CAH1200 Datasheet |
| Internal Part Number | 898-F1827CAH1200 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
| 3D Model | F18 HD, CAH Series.sat F18 HD, CAH Series.dwg F18 HD, CAH Series.stp | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Common Anode - SCR/Diode | |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | |
| Voltage - Off State | 1200V | |
| Current - Gate Trigger (Igt) (Max) | 150mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 25A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A @ 60Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | F1827CAH1200 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
F1827CAH1200 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of F1827CAH1200 is new and unused, you can buy F1827CAH1200 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for F1827CAH1200.
