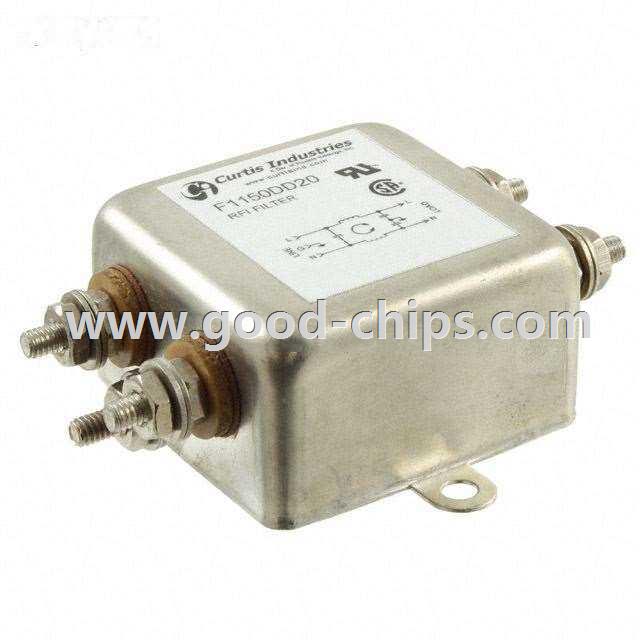

| Manufacturer Part Number: | F1150DD20 |
|---|---|
| Manufacturer: | Curtis Industries |
| Product Category: | Power Line Filter Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FILTER GEN PURPOSE/SGL PHASE 20A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | F1150DD20 Datasheet |
| Internal Part Number | 898-F1150DD20 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI/RFI Basics EMI/RFI Regulations EMI-RFI Testing | |
| Featured Product | F1150 Series RFI Filters | |
| Category | Filters | |
| Family | Power Line Filter Modules | |
| Manufacturer | Curtis Industries | |
| Series | F1150 | |
| Part Status | Active | |
| Filter Type | Single Phase | |
| Configuration | Single Stage | |
| Voltage - Rated DC | - | |
| Voltage - Rated AC | 250V | |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | |
| Voltage - Rated AC (Phase to Phase) | - | |
| Current | 20A | |
| Frequency - Operating | 50/60Hz | |
| Applications | General Purpose | |
| Approvals | CE, UR | |
| Operating Temperature | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Threaded Post (8-32) | |
| Inductance | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | F1150DD20 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
F1150DD20 is in stock for immediate shipping now. We are the distributor of Curtis Industries all series components. The condition of F1150DD20 is new and unused, you can buy F1150DD20 Curtis Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for F1150DD20.
