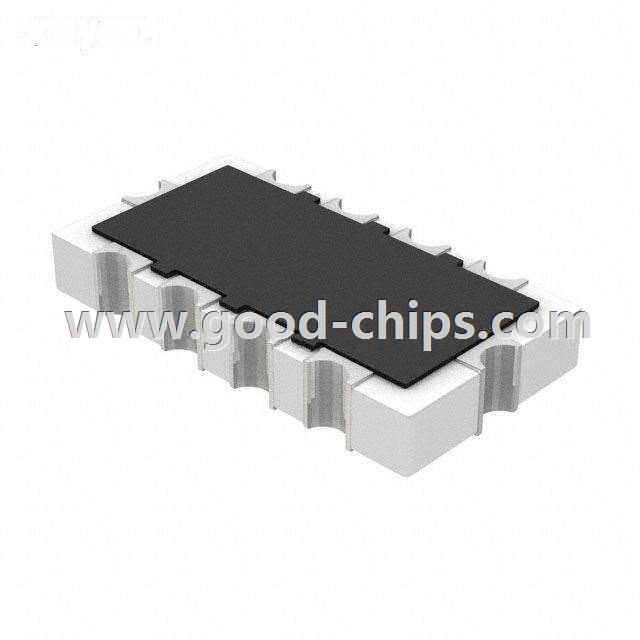

| Manufacturer Part Number: | EZA-ST63AAAJ |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 4th Order Low Pass 4 Channel R = 1 kOhms, C = 100pF 1608 (4021 Metric), Concave |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EZA-ST63AAAJ Datasheet |
| Internal Part Number | 898-EZA-ST63AAAJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Panasonic Electronic Components | |
| Series | EZAST | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 4th | |
| Technology | RC (Pi) | |
| Number of Channels | 4 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 1k | |
| Current | - | |
| Values | R = 1 kOhms, C = 100pF | |
| ESD Protection | No | |
| Operating Temperature | -25°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | 25V | |
| Mounting Type | Surface Mount | |
| Package / Case | 1608 (4021 Metric), Concave | |
| Size / Dimension | 0.157" L x 0.083" W (4.00mm x 2.10mm) | |
| Height | 0.033" (0.85mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EZA-ST63AAAJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EZA-ST63AAAJ is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of EZA-ST63AAAJ is new and unused, you can buy EZA-ST63AAAJ Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EZA-ST63AAAJ.
