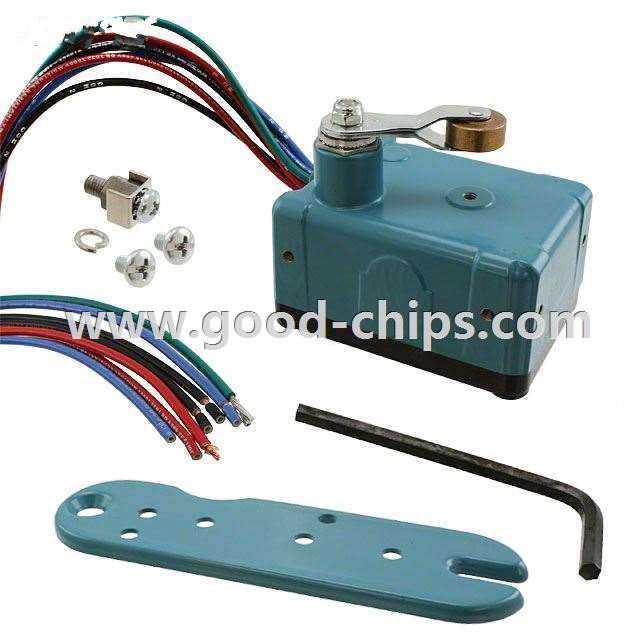

| Manufacturer Part Number: | EXD-AR-3 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION DPDT 10A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EXD-AR-3 Datasheet |
| Internal Part Number | 898-EXD-AR-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MICRO SWITCH™ EX Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | EX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC), 300mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Side Rotary, Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Ingress Protection | - | |
| Features | Explosion Proof | |
| Operating Force, Torque | 227 ~ 680gf | |
| Release Force | 113 ~ 340gf | |
| Pretravel | 0.250" (6.35mm) | |
| Differential Travel | 0.110" (2.8mm) | |
| Overtravel | 25° | |
| Operating Position | - | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Operating Temperature | -40°C ~ 71°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EXD-AR-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EXD-AR-3 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of EXD-AR-3 is new and unused, you can buy EXD-AR-3 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EXD-AR-3.
