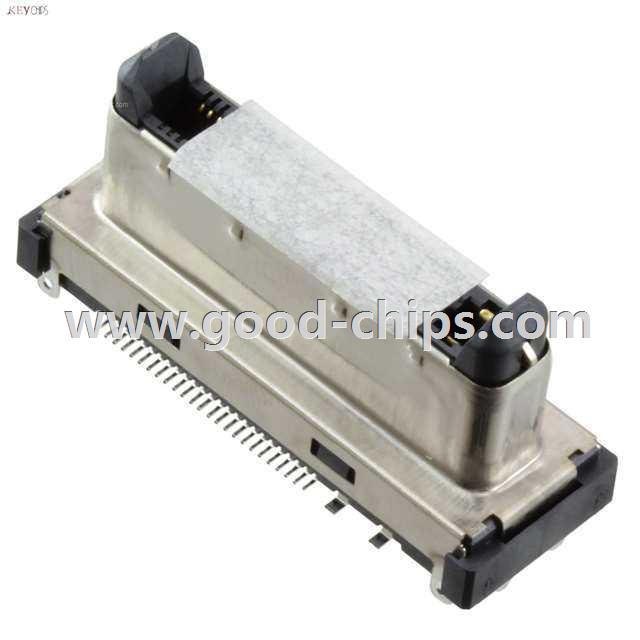

EX80-54P(01)

EX80-54P(01)
Manufacturer Part Number:EX80-54P(01)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:54 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EX80-54P(01) Datasheet
EX80-54P(01)´s Parameters
Internal Part Number898-EX80-54P(01)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerHirose Electric Co Ltd
SeriesEX80
PackagingTray
Part StatusObsolete
Connector TypePlug, Outer Shroud Contacts
Number of Positions54
Pitch0.023" (0.60mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness-
Mated Stacking Heights-
Height Above Board0.594" (15.10mm)
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartEX80-54P(01)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EX80-54P(01) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of EX80-54P(01) is new and unused, you can buy EX80-54P(01) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EX80-54P(01).
