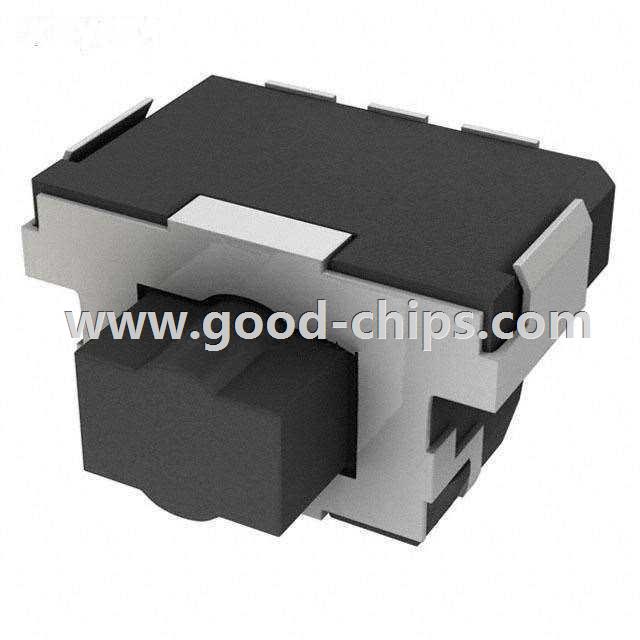

| Manufacturer Part Number: | EVQ-Q0C03K |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPDT Side Actuated Edge Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVQ-Q0C03K Datasheet |
| Internal Part Number | 898-EVQ-Q0C03K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EVEG,H,K,L Series 08/Aug/2014 EVQQ0C,EVQQ0G Series 08/Aug/2014 | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | Panasonic Electronic Components | |
| Series | EVQQ0 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Circuit | SPDT | |
| Switch Function | Off-Mom-Mom | |
| Contact Rating @ Voltage | 0.02A @ 15VDC | |
| Actuator Type | Rectangular Button | |
| Mounting Type | Edge Mount, Right Angle | |
| Actuator Height off PCB, from Pins | - | |
| Actuator Orientation | Side Actuated | |
| Termination Style | SMD (SMT) Tab | |
| Outline | 6.20mm x 3.70mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 100/260gf | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 0.40mm, 0.50mm | |
| Mechanical Life | 200,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVQ-Q0C03K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVQ-Q0C03K is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of EVQ-Q0C03K is new and unused, you can buy EVQ-Q0C03K Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVQ-Q0C03K.
