Manufacturer Part Number: | EVQ-9P6B40 |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | Tactile Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

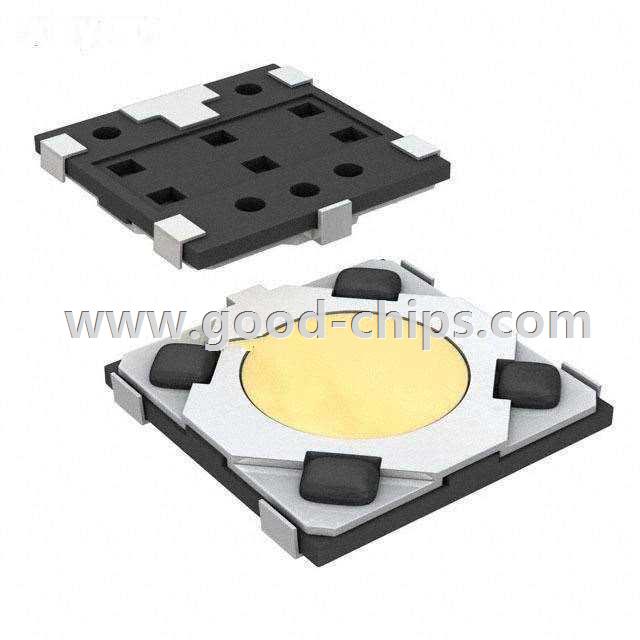

Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVQ-9P6B40 Datasheet |
Internal Part Number | 898-EVQ-9P6B40 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EVQ-6P6 and EVQ-9P6 Series | |
Category | Switches | |
Family | Tactile Switches | |
Manufacturer | Panasonic Electronic Components | |
Series | EVQ9P6 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Contact Rating @ Voltage | 0.02A @ 15VDC | |
Actuator Type | Flush | |
Mounting Type | Surface Mount | |
Actuator Height off PCB, from Pins | 0.43mm | |
Actuator Orientation | Top Actuated | |
Termination Style | J Lead | |
Outline | 4.10mm x 4.10mm | |
Illumination | Non-Illuminated | |
Illumination Voltage (Nominal) | - | |
Illumination Type, Color | - | |
Operating Force | 240gf | |
Ingress Protection | - | |
Features | - | |
Actuator Material | - | |
Switch Travel | 0.20mm | |
Mechanical Life | 500,000 Cycles | |
Operating Temperature | -20°C ~ 70°C | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVQ-9P6B40 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVQ-9P6B40 is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of EVQ-9P6B40 is new and unused, you can buy EVQ-9P6B40 Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVQ-9P6B40.
