Manufacturer Part Number: | EVK1060A |
---|---|
Manufacturer: | Atmel |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

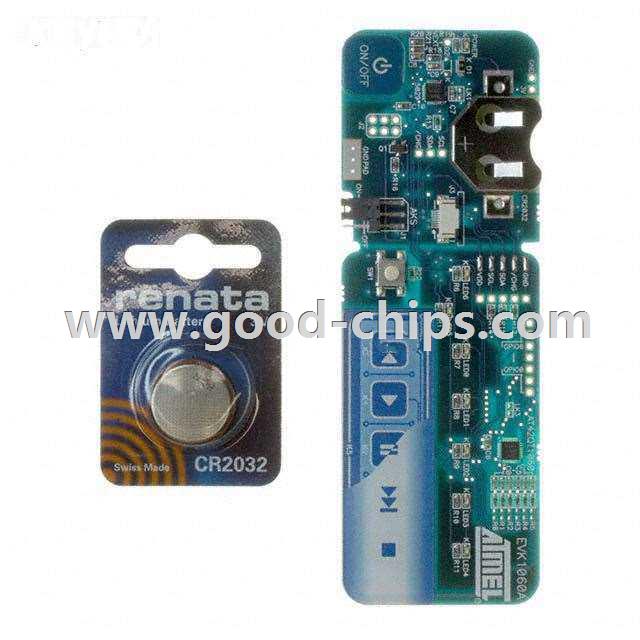

Description: | AT42QT1060 Quantum, QTouch™ Touch, Capacitive Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVK1060A Datasheet |
Internal Part Number | 898-EVK1060A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Touch Interface Solutions Qtouch- Create your own Touch Application | |
Video File | Introducing Atmel Studio 7 | |
Design Resources | Development Tool Selector | |
Featured Product | Atmel - AT42QT1060 – 6-channel QTouch™ IC | |
Reference Design Library | EVK1060A: 6 Button, Capacitive Switch Sensor | |
PCN Obsolescence/ EOL | Multiple Devices 21/Jan/2014 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Atmel | |
Series | Quantum, QTouch™ | |
Part Status | Obsolete | |
Sensor Type | Touch, Capacitive | |
Sensing Range | 1 Button/Key | |
Interface | I²C | |
Sensitivity | 2mm ~ 5mm Pad Widths | |
Voltage - Supply | 3V | |
Embedded | No | |
Supplied Contents | Board | |
Utilized IC / Part | AT42QT1060 | |
Standard Package | 5 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVK1060A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVK1060A is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of EVK1060A is new and unused, you can buy EVK1060A Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVK1060A.
