| Manufacturer Part Number: | EVB9S12XDP512E |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

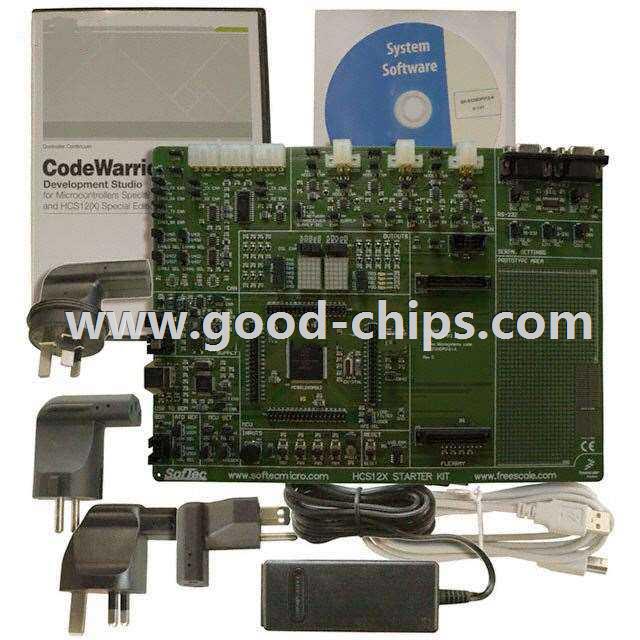

| Description: | MC9S12XDT512 HCS12X MCU 16-Bit HCS12X Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVB9S12XDP512E Datasheet |
| Internal Part Number | 898-EVB9S12XDP512E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | HCS12X | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 16-Bit | |
| Core Processor | HCS12X | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | MC9S12XDT512 | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s), Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVB9S12XDP512E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVB9S12XDP512E is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of EVB9S12XDP512E is new and unused, you can buy EVB9S12XDP512E NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVB9S12XDP512E.
