| Manufacturer Part Number: | EVB90316-DC |
|---|---|
| Manufacturer: | Melexis Technologies NV |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9066 Pieces |
| Unit Price: | Quote by Email |

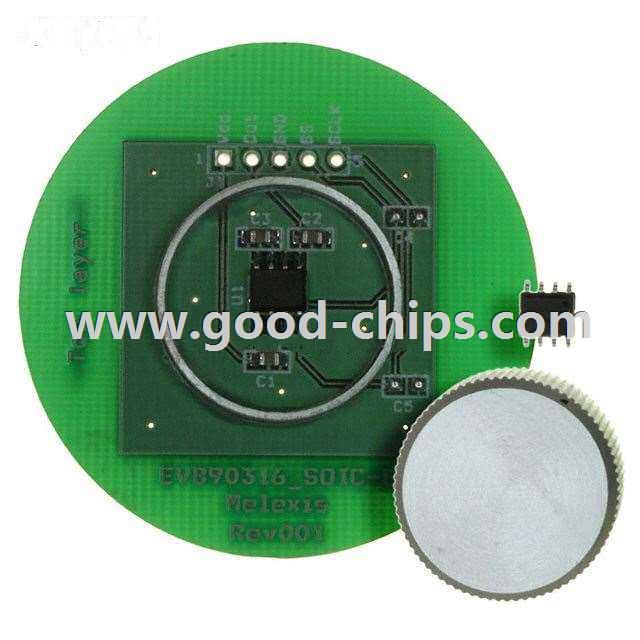

| Description: | MLX90316 Triaxis® Magnetic, Rotary Position Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVB90316-DC Datasheet |
| Internal Part Number | 898-EVB90316-DC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Hall Applications Guide Back-End Calibration of MLX90316 Magnetic Rotary Position Sensor | |
| Design Resources | Development Tool Selector | |
| Online Catalog | MLX90316 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Melexis Technologies NV | |
| Series | Triaxis® | |
| Part Status | Active | |
| Sensor Type | Magnetic, Rotary Position | |
| Sensing Range | 360° | |
| Interface | Serial | |
| Sensitivity | - | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Embedded | Yes, Other | |
| Supplied Contents | Board, Magnetic Knob | |
| Utilized IC / Part | MLX90316 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVB90316-DC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVB90316-DC is in stock for immediate shipping now. We are the distributor of Melexis Technologies NV all series components. The condition of EVB90316-DC is new and unused, you can buy EVB90316-DC Melexis Technologies NV with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVB90316-DC.
