| Manufacturer Part Number: | EVB-USB5744 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

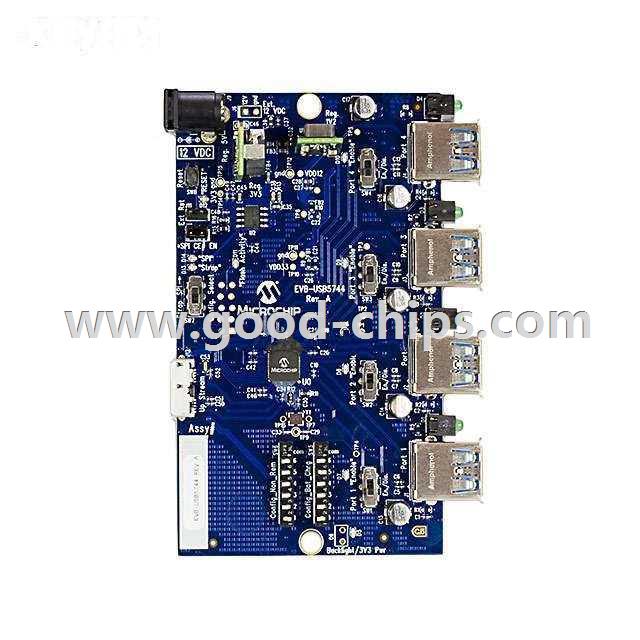

| Description: | USB5744 - Interface, USB 3.0 Hub Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVB-USB5744 Datasheet |
| Internal Part Number | 898-EVB-USB5744 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | EVB-USB5744 BOM EVB-USB5744 Gerber Files EVB-USB5744 Schematics Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | USB5744 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, USB 3.0 Hub | |
| Embedded | - | |
| Utilized IC / Part | USB5744 | |
| Primary Attributes | 4-Channel (Quad) | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVB-USB5744 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVB-USB5744 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of EVB-USB5744 is new and unused, you can buy EVB-USB5744 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVB-USB5744.
