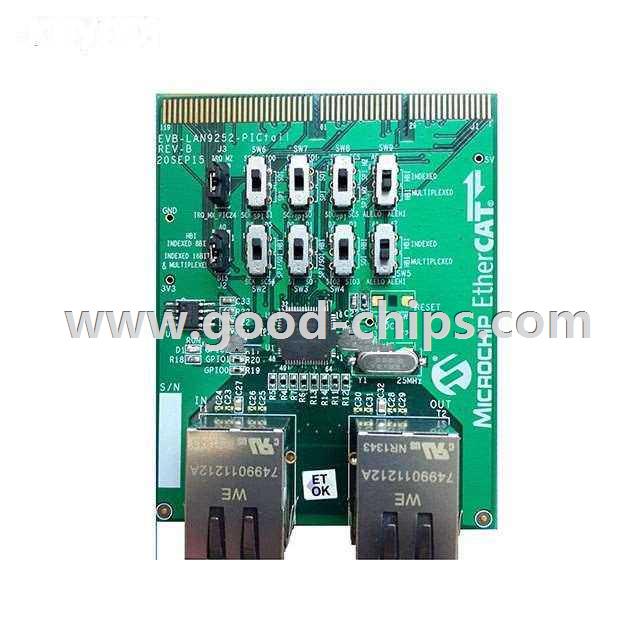

| Manufacturer Part Number: | EVB-LAN9252-PICTAIL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | LAN9252 - Interface, Ethernet Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS compliant by exemption |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVB-LAN9252-PICTAIL Datasheet |
| Internal Part Number | 898-EVB-LAN9252-PICTAIL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | SDK for EVB-LAN9252-PICTAIL | |
| Design Resources | EVB-LAN9252-PICTAIL Add-On Brd Gerber Files EVB-LAN9252-PICTAIL Add-On Brd BOM EVB-LAN9252-PICTAIL Add-On Brd Schematics | |
| Online Catalog | LAN9252-PICtail™ Add-On Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, Ethernet | |
| Embedded | - | |
| Utilized IC / Part | LAN9252 | |
| Primary Attributes | EtherCAT Slave Controller | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVB-LAN9252-PICTAIL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVB-LAN9252-PICTAIL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of EVB-LAN9252-PICTAIL is new and unused, you can buy EVB-LAN9252-PICTAIL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVB-LAN9252-PICTAIL.
