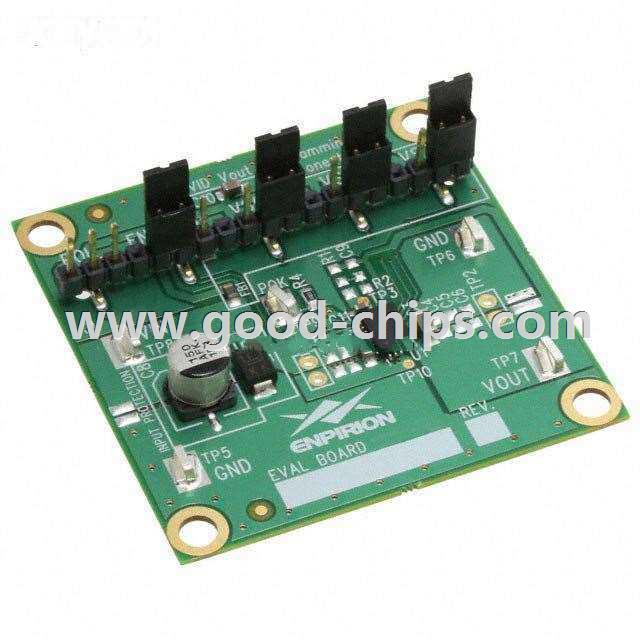

| Manufacturer Part Number: | EVB-EN5322QI |
|---|---|
| Manufacturer: | Altera |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9027 Pieces |
| Unit Price: | Quote by Email |
| Description: | EN5322QI - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVB-EN5322QI Datasheet |
| Internal Part Number | 898-EVB-EN5322QI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | EN5322QI Gerber Files Development Tool Selector | |
| Featured Product | Enpirion® PowerSoC DC-DC Converters | |
| Online Catalog | EN5322QI Enpirion® Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Altera | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 0.8V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, or 3.3V | |
| Current - Output | 2A | |
| Voltage - Input | 2.4 V ~ 5.5 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 4MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | EN5322QI | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVB-EN5322QI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVB-EN5322QI is in stock for immediate shipping now. We are the distributor of Altera all series components. The condition of EVB-EN5322QI is new and unused, you can buy EVB-EN5322QI Altera with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVB-EN5322QI.
