Manufacturer Part Number: | EVALSF3-ICE3B0565 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

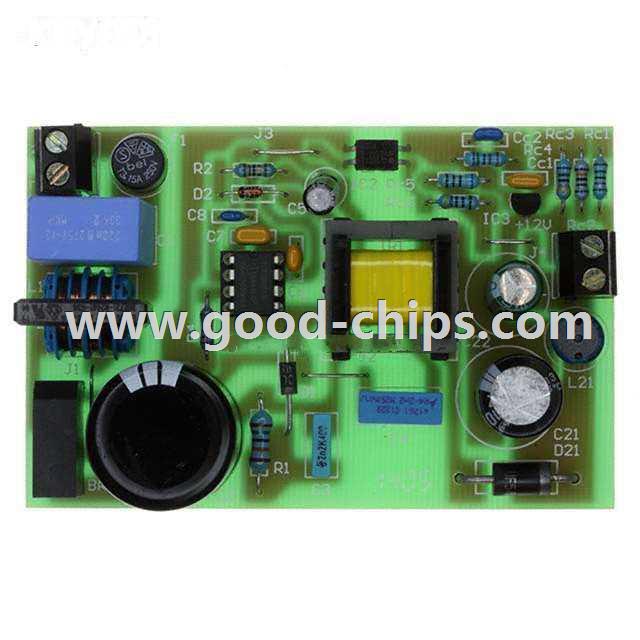

Description: | ICE3B0565 CoolSET®F3 AC/DC, Primary Side 1, Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVALSF3-ICE3B0565 Datasheet |
Internal Part Number | 898-EVALSF3-ICE3B0565 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Infineon Technologies | |
Series | CoolSET®F3 | |
Part Status | Obsolete | |
Main Purpose | AC/DC, Primary Side | |
Outputs and Type | 1, Isolated | |
Power - Output | 12W | |
Voltage - Output | 12V | |
Current - Output | 1A | |
Voltage - Input | 85 ~ 265 VAC | |
Regulator Topology | Flyback | |
Frequency - Switching | 67kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ICE3B0565 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVALSF3-ICE3B0565 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVALSF3-ICE3B0565 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of EVALSF3-ICE3B0565 is new and unused, you can buy EVALSF3-ICE3B0565 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVALSF3-ICE3B0565.
