| Manufacturer Part Number: | EVALPFC1-TDA 4863-2 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

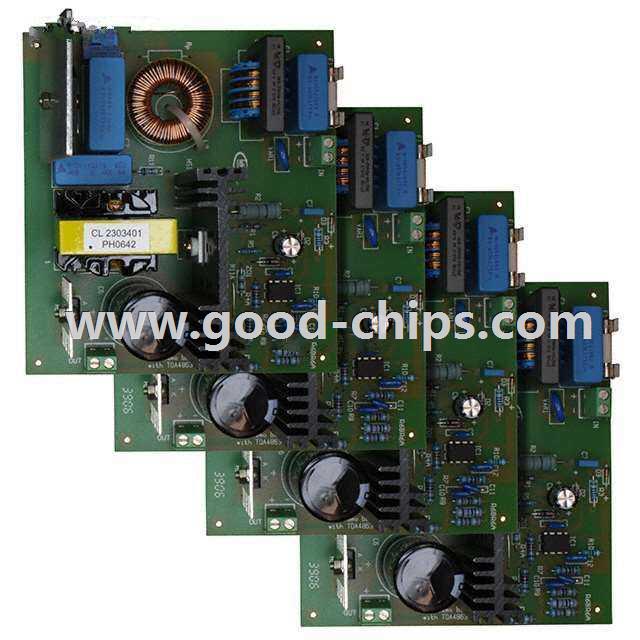

| Description: | TDA4863-2 CoolMOS™ Series Power Management, Power Factor Correction Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVALPFC1-TDA 4863-2 Datasheet |
| Internal Part Number | 898-EVALPFC1-TDA 4863-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Infineon Technologies | |
| Series | CoolMOS™ | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Power Factor Correction | |
| Embedded | No | |
| Utilized IC / Part | TDA4863-2 | |
| Primary Attributes | 160W, 400V, 400mA Output, 85~265VAC Input | |
| Secondary Attributes | Totem Pole Output with Active Shutdown | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVALPFC1-TDA 4863-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVALPFC1-TDA 4863-2 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of EVALPFC1-TDA 4863-2 is new and unused, you can buy EVALPFC1-TDA 4863-2 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVALPFC1-TDA 4863-2.
