| Manufacturer Part Number: | EVALLEDICL8201F2 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |

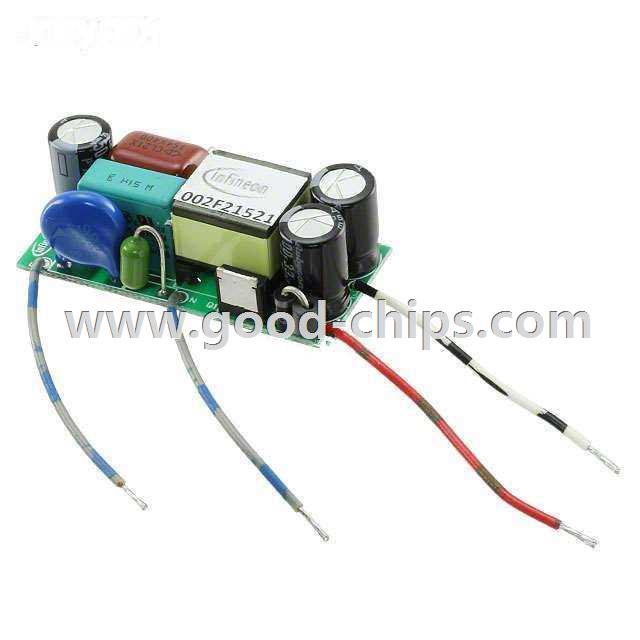

| Description: | ICL8201, IPS65R1K5CE CoolMOS™ Series 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVALLEDICL8201F2 Datasheet |
| Internal Part Number | 898-EVALLEDICL8201F2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Featured Product | Infineon CoolMOS CE | |
| Online Catalog | ICL8201 and IPS65R1K5CE Reference Design | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | CoolMOS™ | |
| Part Status | Active | |
| Current - Output / Channel | 270mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | 55 V ~ 75 V | |
| Features | - | |
| Voltage - Input | 170 ~ 277 VAC | |
| Supplied Contents | Board | |
| Utilized IC / Part | ICL8201, IPS65R1K5CE | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVALLEDICL8201F2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVALLEDICL8201F2 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of EVALLEDICL8201F2 is new and unused, you can buy EVALLEDICL8201F2 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVALLEDICL8201F2.
