Manufacturer Part Number: | EVAL2QR0665G28W16VTOBO1 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

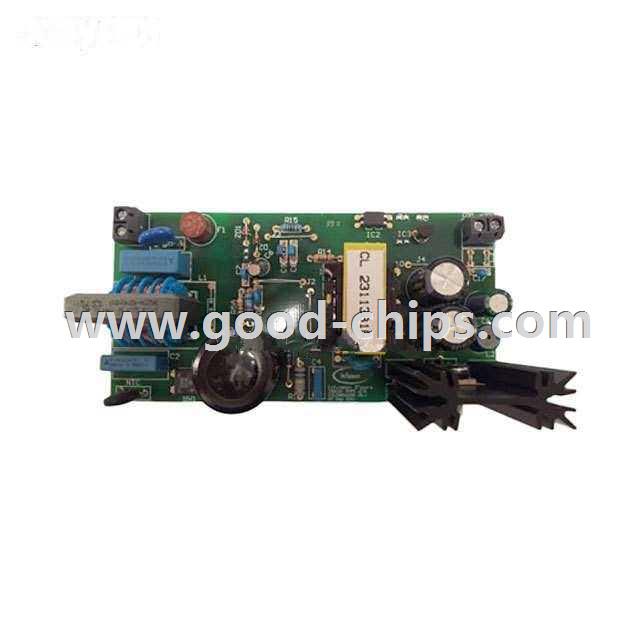

Description: | ICE2QR0665G CoolSET®-Q1 AC/DC, Primary Side 1, Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL2QR0665G28W16VTOBO1 Datasheet |
Internal Part Number | 898-EVAL2QR0665G28W16VTOBO1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Automatic Opening Systems | |
Online Catalog | Quasi-Resonant CoolSET™ ICE2QR0665G Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Infineon Technologies | |
Series | CoolSET®-Q1 | |
Part Status | Active | |
Main Purpose | AC/DC, Primary Side | |
Outputs and Type | 1, Isolated | |
Power - Output | 28W | |
Voltage - Output | 16V | |
Current - Output | 1.75A | |
Voltage - Input | 85 ~ 265 VAC | |
Regulator Topology | Flyback | |
Frequency - Switching | 65kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ICE2QR0665G | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL2QR0665G28W16VTOBO1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL2QR0665G28W16VTOBO1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of EVAL2QR0665G28W16VTOBO1 is new and unused, you can buy EVAL2QR0665G28W16VTOBO1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL2QR0665G28W16VTOBO1.
