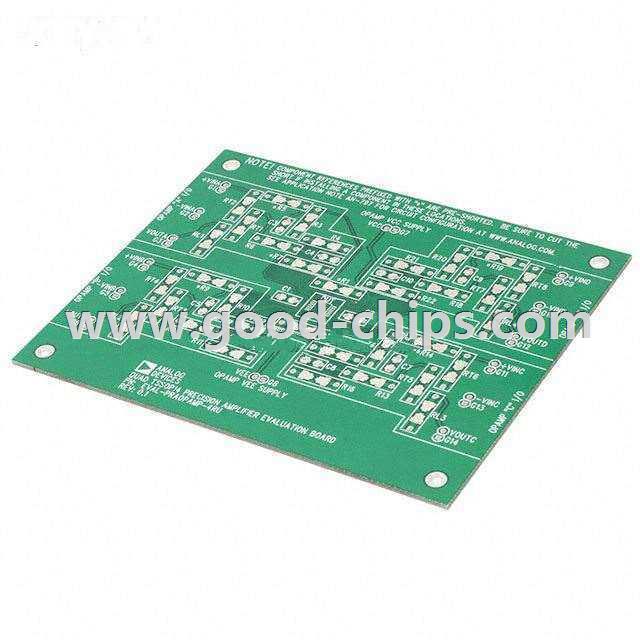

| Manufacturer Part Number: | EVAL-PRAOPAMP-4RUZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14-TSSOP Package 4 - Quad Channels per IC General Purpose Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-PRAOPAMP-4RUZ Datasheet |
| Internal Part Number | 898-EVAL-PRAOPAMP-4RUZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Common Photodiode Op-Amp Circuit Problems and Solutions | |
| Video File | Stability 101: Parasitic Capacitance in Operational Amplifiers Stability 101: Decompensated Operational Amplifiers Stability 101: Driving a Capacitive Load (Operational Amplifiers) | |
| Design Resources | Development Tool Selector | |
| Featured Product | Development Tools - Analog Devices │ Digi-Key Electronics | |
| Online Catalog | PRAOPAMP Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 4 - Quad | |
| Amplifier Type | General Purpose | |
| Output Type | - | |
| Slew Rate | - | |
| -3db Bandwidth | - | |
| Current - Output / Channel | - | |
| Operating Temperature | - | |
| Current - Supply (Main IC) | - | |
| Voltage - Supply, Single/Dual (±) | - | |
| Board Type | Bare (Unpopulated) | |
| Supplied Contents | Board | |
| Utilized IC / Part | 14-TSSOP Package | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-PRAOPAMP-4RUZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-PRAOPAMP-4RUZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-PRAOPAMP-4RUZ is new and unused, you can buy EVAL-PRAOPAMP-4RUZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-PRAOPAMP-4RUZ.
