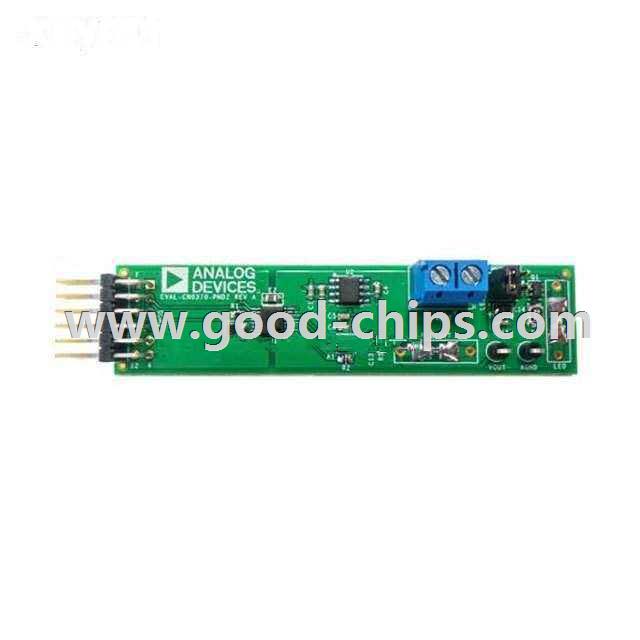

Manufacturer Part Number: | EVAL-CN0370-PMDZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Expansion Boards |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |
Description: | AD5542A, ADA4500-2, ADR4525 LED Driver Power Management Pmod™ Platform Evaluation Expansion Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL-CN0370-PMDZ Datasheet |
Internal Part Number | 898-EVAL-CN0370-PMDZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Expansion Boards | |
Manufacturer | Analog Devices Inc. | |
Series | Circuits from the Lab™ | |
Part Status | Active | |
Platform | Pmod™ | |
Type | Power Management | |
Function | LED Driver | |
Utilized IC / Part | AD5542A, ADA4500-2, ADR4525 | |
Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL-CN0370-PMDZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL-CN0370-PMDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-CN0370-PMDZ is new and unused, you can buy EVAL-CN0370-PMDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-CN0370-PMDZ.
