Stocking distributor of Electronic Components
Email: [email protected]

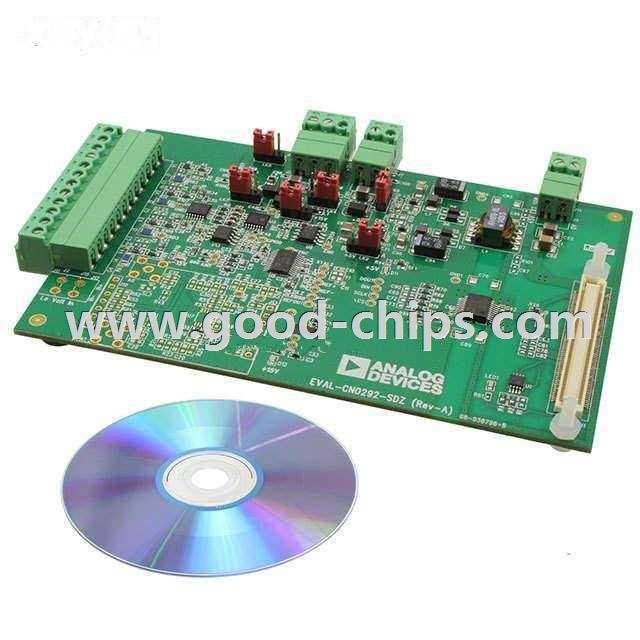

| Manufacturer Part Number: | EVAL-CN0292-SDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD7176-2, AD8475, ADA4096-4, ADA4898-1, ADG1204, ADP1720, ADP7102, ADP7182, ADR4550, ADuM3471 Circuits from the Lab™ Series Reference Design, Isolated Data Acquisition System Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-CN0292-SDZ Datasheet |
| Internal Part Number | 898-EVAL-CN0292-SDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | CN-0292 Circuit Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | Circuits from the Lab™ | |
| Part Status | Active | |
| Main Purpose | Reference Design, Isolated Data Acquisition System | |
| Embedded | No | |
| Utilized IC / Part | AD7176-2, AD8475, ADA4096-4, ADA4898-1, ADG1204, ADP1720, ADP7102, ADP7182, ADR4550, ADuM3471 | |
| Primary Attributes | 4-Channel (Quad) | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-CN0292-SDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-CN0292-SDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-CN0292-SDZ is new and unused, you can buy EVAL-CN0292-SDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-CN0292-SDZ.
