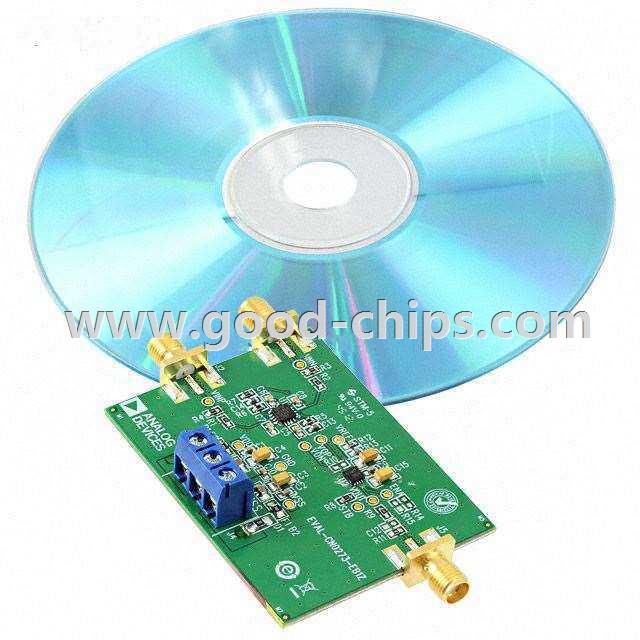

| Manufacturer Part Number: | EVAL-CN0273-EB1Z |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADA4817-2, ADA4830-1 Circuits from the Lab™ Series 1 - Single Channels per IC Instrumentation Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-CN0273-EB1Z Datasheet |
| Internal Part Number | 898-EVAL-CN0273-EB1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | EVAL-CN0211-EB1Z Circuit Note Development Tool Selector | |
| Online Catalog | ADV7391 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Analog Devices Inc. | |
| Series | Circuits from the Lab™ | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Instrumentation | |
| Output Type | Single-Ended | |
| Slew Rate | - | |
| -3db Bandwidth | 35MHz | |
| Current - Output / Channel | - | |
| Operating Temperature | - | |
| Current - Supply (Main IC) | - | |
| Voltage - Supply, Single/Dual (±) | ±5V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADA4817-2, ADA4830-1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-CN0273-EB1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-CN0273-EB1Z is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-CN0273-EB1Z is new and unused, you can buy EVAL-CN0273-EB1Z Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-CN0273-EB1Z.
