Manufacturer Part Number: | EVAL-ADXL346Z |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

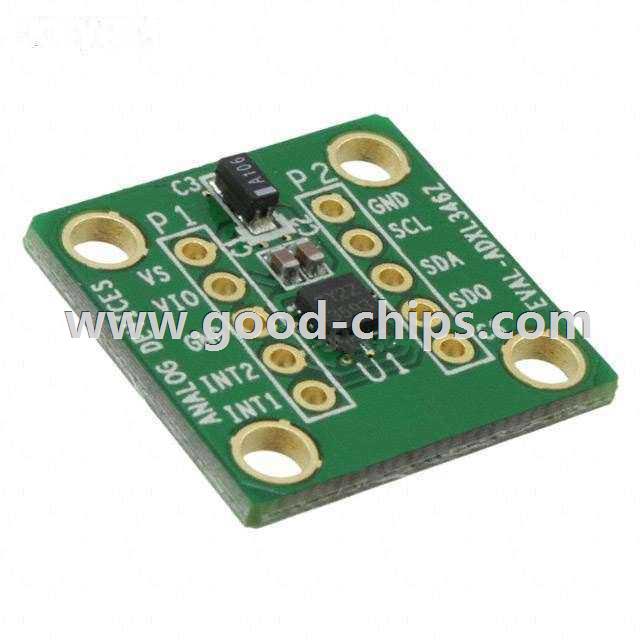

Description: | ADXL346 iMEMS® Accelerometer, 3 Axis Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL-ADXL346Z Datasheet |
Internal Part Number | 898-EVAL-ADXL346Z | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MEMS Based Inertial Measurement Units | |
Design Resources | Development Tool Selector | |
Online Catalog | iMEMS® ADXL346 Inertial Sensor Evaluation System | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Analog Devices Inc. | |
Series | iMEMS® | |
Part Status | Active | |
Sensor Type | Accelerometer, 3 Axis | |
Sensing Range | ±2g, 4g, 8g, 16g | |
Interface | I²C, SPI | |
Sensitivity | 256LSB/g, 128LSB/g, 64LSB/g, 32LSB/g | |
Voltage - Supply | - | |
Embedded | No | |
Supplied Contents | Board | |
Utilized IC / Part | ADXL346 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL-ADXL346Z | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL-ADXL346Z is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADXL346Z is new and unused, you can buy EVAL-ADXL346Z Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADXL346Z.
