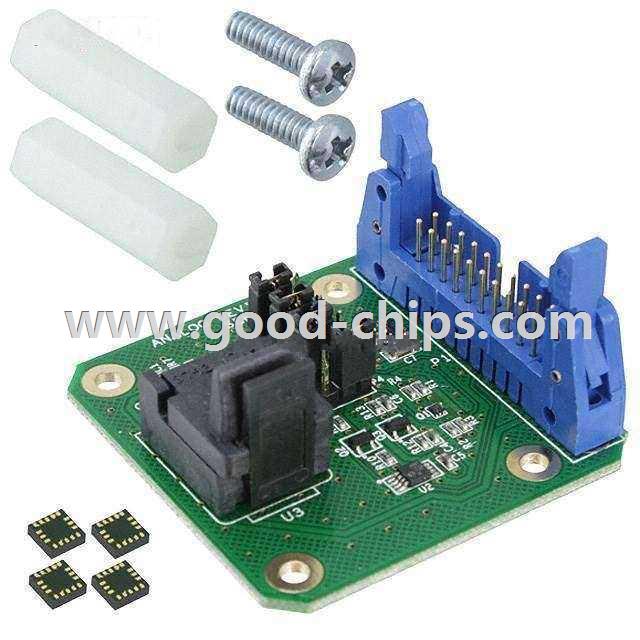

| Manufacturer Part Number: | EVAL-ADXL346Z-S |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADXL346 iMEMS® Accelerometer, 3 Axis Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-ADXL346Z-S Datasheet |
| Internal Part Number | 898-EVAL-ADXL346Z-S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| Design Resources | ADXL346 Satellite Board Schematic ADXL346 Satellite PCB Layout Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Analog Devices Inc. | |
| Series | iMEMS® | |
| Part Status | Active | |
| Sensor Type | Accelerometer, 3 Axis | |
| Sensing Range | ±2g, 4g, 8g, 16g | |
| Interface | I²C, SPI | |
| Sensitivity | 256LSB/g, 128LSB/g, 64LSB/g, 32LSB/g | |
| Voltage - Supply | - | |
| Embedded | No | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADXL346 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-ADXL346Z-S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-ADXL346Z-S is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADXL346Z-S is new and unused, you can buy EVAL-ADXL346Z-S Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADXL346Z-S.
