| Manufacturer Part Number: | EVAL-ADXL343Z |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

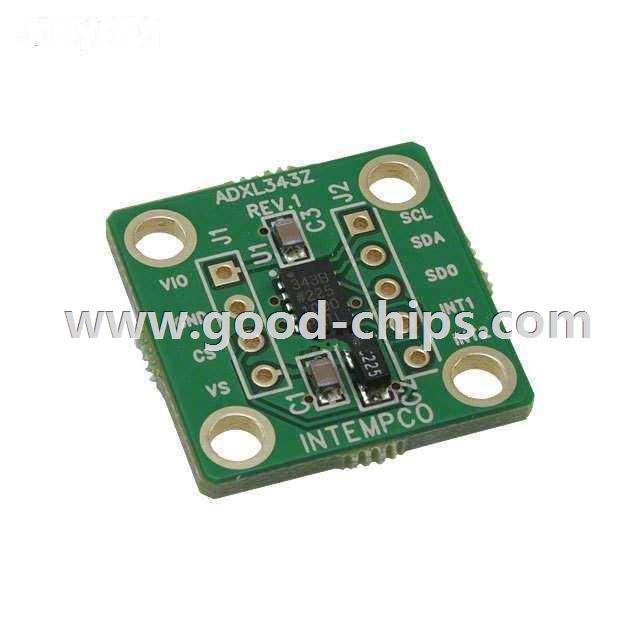

| Description: | ADXL343 - Accelerometer, 3 Axis Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-ADXL343Z Datasheet |
| Internal Part Number | 898-EVAL-ADXL343Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ADXL343 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Sensor Type | Accelerometer, 3 Axis | |
| Sensing Range | ±2g, 4g, 8g, 16g | |
| Interface | I²C, SPI | |
| Sensitivity | 256LSB/g, 128LSB/g, 64LSB/g, 32LSB/g | |
| Voltage - Supply | 2 V ~ 3.6 V | |
| Embedded | No | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADXL343 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-ADXL343Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-ADXL343Z is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADXL343Z is new and unused, you can buy EVAL-ADXL343Z Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADXL343Z.
