Manufacturer Part Number: | EVAL-ADUM4160EBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

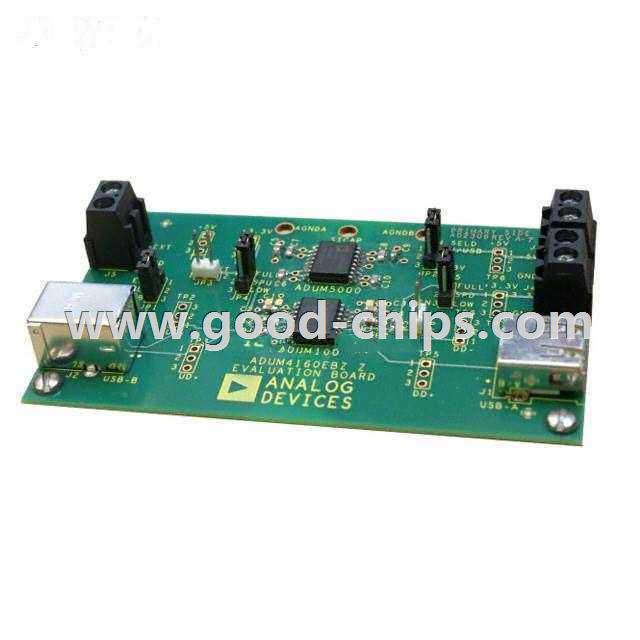

Description: | ADuM4160 iCoupler® Series Interface, Digital Isolator Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL-ADUM4160EBZ Datasheet |
Internal Part Number | 898-EVAL-ADUM4160EBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | iCoupler Digital Isolators Meet Strict HEV/EV Requirements ezLINX™ iCoupler® Isolated Interface Development Environment iCoupler® Digital Isolators in Motor Control Designs | |
Design Resources | Development Tool Selector | |
Online Catalog | ADuM4160 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Analog Devices Inc. | |
Series | iCoupler® | |
Part Status | Active | |
Main Purpose | Interface, Digital Isolator | |
Embedded | No | |
Utilized IC / Part | ADuM4160 | |
Primary Attributes | USB Bidirectional Isolation | |
Secondary Attributes | 3.1V ~ 5.5V Supply | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL-ADUM4160EBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL-ADUM4160EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADUM4160EBZ is new and unused, you can buy EVAL-ADUM4160EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADUM4160EBZ.
