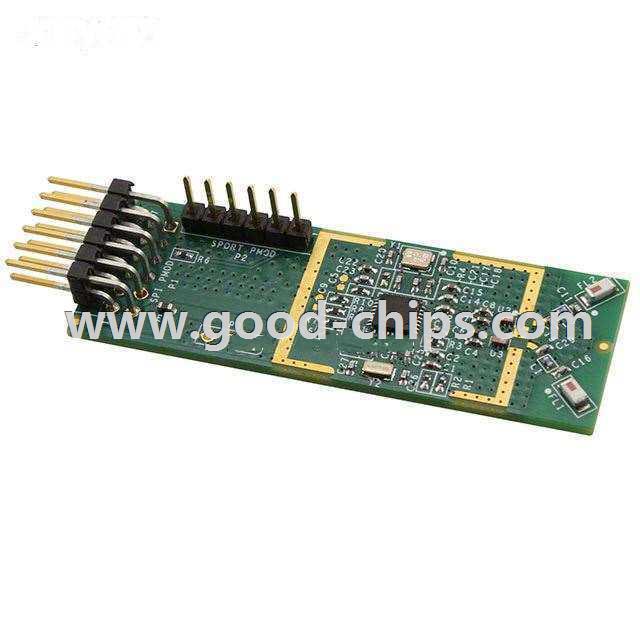

| Manufacturer Part Number: | EVAL-ADF7242-PMDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Expansion Boards |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADF7242 Transceiver RF Pmod™ Platform Evaluation Expansion Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-ADF7242-PMDZ Datasheet |
| Internal Part Number | 898-EVAL-ADF7242-PMDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | ADF7242 Pmod Eval Board Using Johanson Technology 2450AT18A100 | |
| Design Resources | EVAL-ADF7242-PMDZ Schematic EVAL-ADF7242-PMDZ Layout EVAL-ADF7242-PMDZ GBR EVAL-ADF7242-PMDZ BOM Development Tool Selector | |
| Online Catalog | ADF7242 PMOD Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Expansion Boards | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Platform | Pmod™ | |
| Type | RF | |
| Function | Transceiver | |
| Utilized IC / Part | ADF7242 | |
| Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-ADF7242-PMDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-ADF7242-PMDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADF7242-PMDZ is new and unused, you can buy EVAL-ADF7242-PMDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADF7242-PMDZ.
