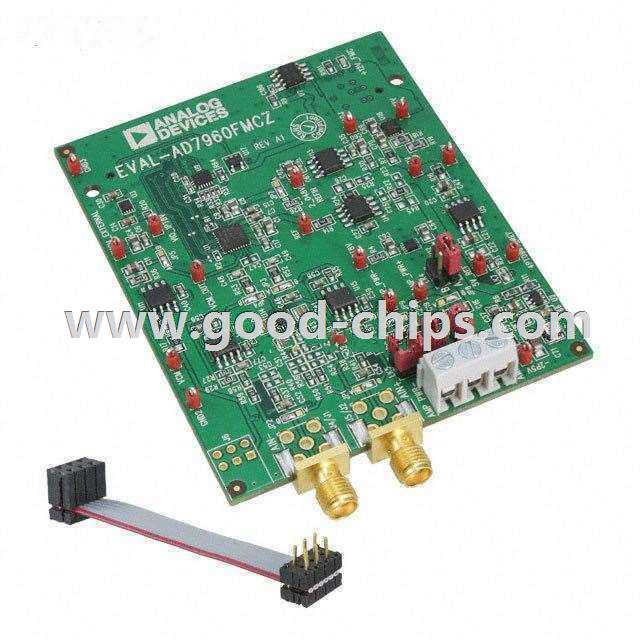

Manufacturer Part Number: | EVAL-AD7960FMCZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |
Description: | AD7960 PulSAR® 18 Bit 5M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL-AD7960FMCZ Datasheet |
Internal Part Number | 898-EVAL-AD7960FMCZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Featured Product | AD7960/61 Pulsar® Differential ADCs 4th Quarter Select Products | |
Online Catalog | AD7960 Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Analog Devices Inc. | |
Series | PulSAR® | |
Part Status | Active | |
Number of A/D Converters | 1 | |
Number of Bits | 18 | |
Sampling Rate (Per Second) | 5M | |
Data Interface | LVDS - Serial | |
Input Range | ±VREF | |
Power (Typ) @ Conditions | 64.5mW @ 5MSPS | |
Utilized IC / Part | AD7960 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL-AD7960FMCZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL-AD7960FMCZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-AD7960FMCZ is new and unused, you can buy EVAL-AD7960FMCZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-AD7960FMCZ.
