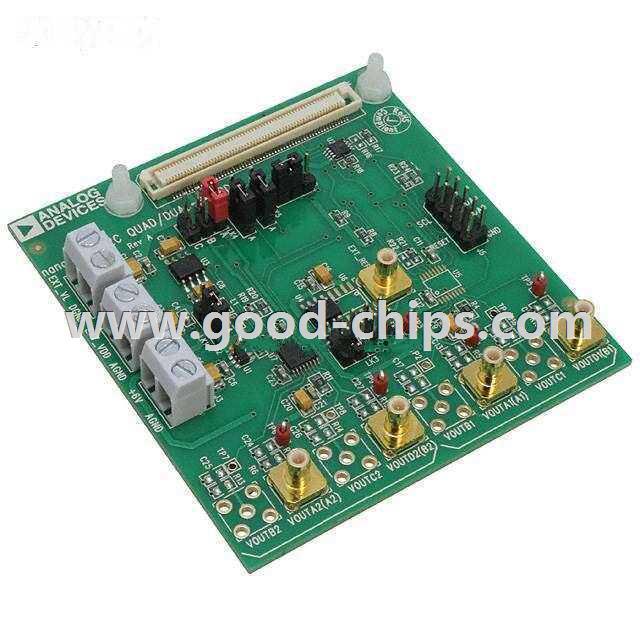

| Manufacturer Part Number: | EVAL-AD5697RSDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD5697R 12 Bit Digital to Analog Converter (DAC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-AD5697RSDZ Datasheet |
| Internal Part Number | 898-EVAL-AD5697RSDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | AD568x and AD569x nanoDAC® 2nd Quarter Select Products | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
| Manufacturer | Analog Devices Inc. | |
| Series | nanoDAC+® | |
| Part Status | Obsolete | |
| Number of DAC's | 2 | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | - | |
| Data Interface | I²C, Serial | |
| Settling Time | 5µs | |
| DAC Type | Voltage | |
| Operating Temperature | -40°C ~ 105°C | |
| Supplied Contents | Board | |
| Utilized IC / Part | AD5697R | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-AD5697RSDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-AD5697RSDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-AD5697RSDZ is new and unused, you can buy EVAL-AD5697RSDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-AD5697RSDZ.
