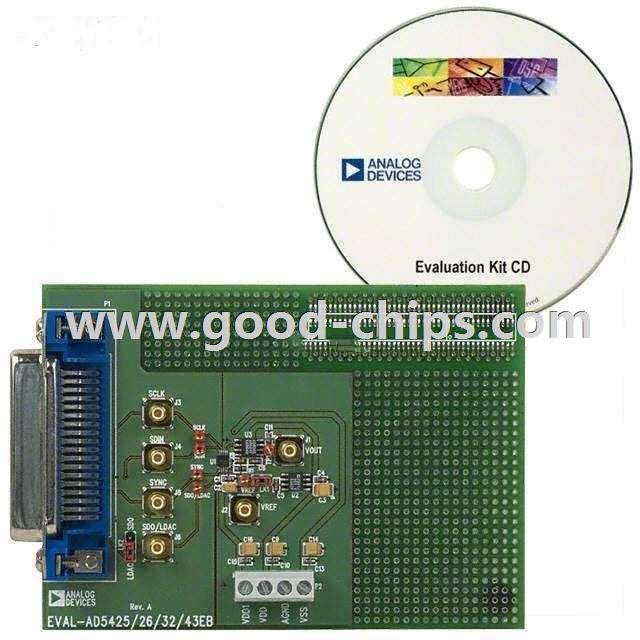

Manufacturer Part Number: | EVAL-AD5425EBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AD5425 8 Bit 2.47M Samples Per Second Digital to Analog Converter (DAC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EVAL-AD5425EBZ Datasheet |
Internal Part Number | 898-EVAL-AD5425EBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Obsolete | |
Number of DAC's | 1 | |
Number of Bits | 8 | |
Sampling Rate (Per Second) | 2.47M | |
Data Interface | Serial | |
Settling Time | 15ns | |
DAC Type | Current | |
Operating Temperature | -40°C ~ 125°C | |
Supplied Contents | Board | |
Utilized IC / Part | AD5425 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EVAL-AD5425EBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EVAL-AD5425EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-AD5425EBZ is new and unused, you can buy EVAL-AD5425EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-AD5425EBZ.
