| Manufacturer Part Number: | EVAL-AD2S1210SDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |

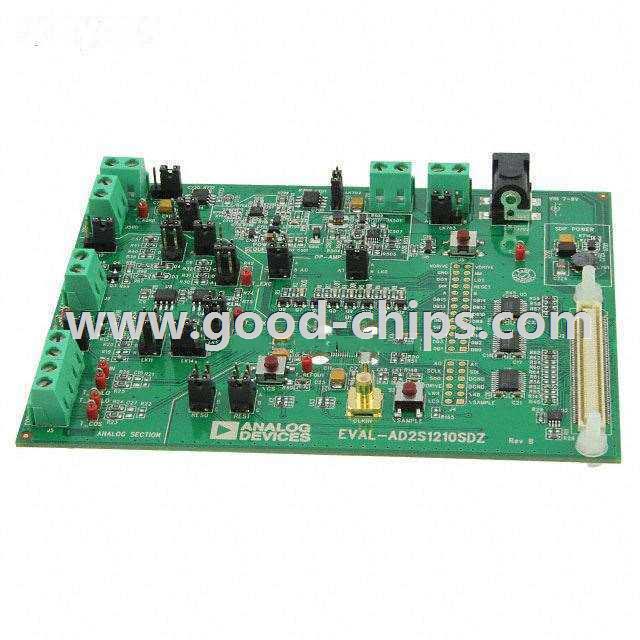

| Description: | AD2S1210 - Interface, Resolver-to-Digital Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-AD2S1210SDZ Datasheet |
| Internal Part Number | 898-EVAL-AD2S1210SDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | AD2S1210 Eval Brd Design Files Development Tool Selector | |
| Online Catalog | AD2S1210 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, Resolver-to-Digital | |
| Embedded | No | |
| Utilized IC / Part | AD2S1210 | |
| Primary Attributes | 10 ~ 16-bit Resolution, 3125 rps Max (10-bit) or 1024 Pulses | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-AD2S1210SDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-AD2S1210SDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-AD2S1210SDZ is new and unused, you can buy EVAL-AD2S1210SDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-AD2S1210SDZ.
