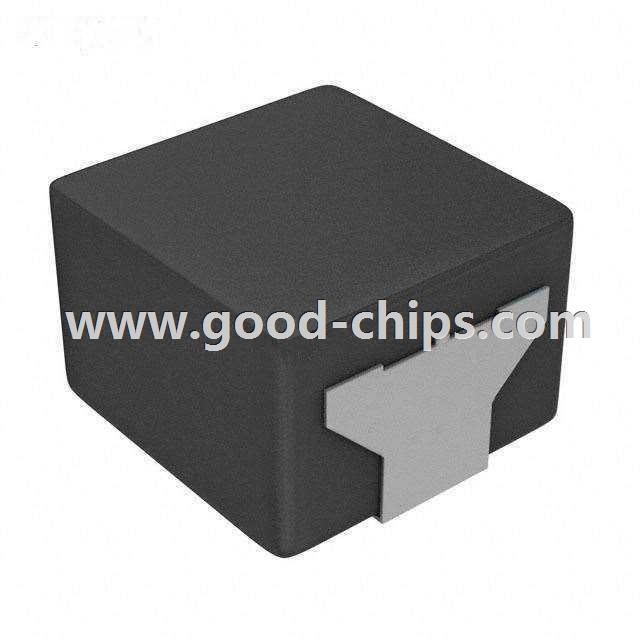

Manufacturer Part Number: | ETQ-P4M1R0KVC |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1µH Shielded Wirewound Inductor 23.9A 2.86 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ETQ-P4M1R0KVC Datasheet |
Internal Part Number | 898-ETQ-P4M1R0KVC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PCC Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Panasonic Electronic Components | |
Series | PCC-M1040M | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Metal Composite | |
Inductance | 1µH | |
Tolerance | ±20% | |
Current Rating | 23.9A | |
Current - Saturation | 34.6A | |
Shielding | Shielded | |
DC Resistance (DCR) | 2.86 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 155°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.421" L x 0.394" W (10.70mm x 10.00mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ETQ-P4M1R0KVC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ETQ-P4M1R0KVC is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ETQ-P4M1R0KVC is new and unused, you can buy ETQ-P4M1R0KVC Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ETQ-P4M1R0KVC.
