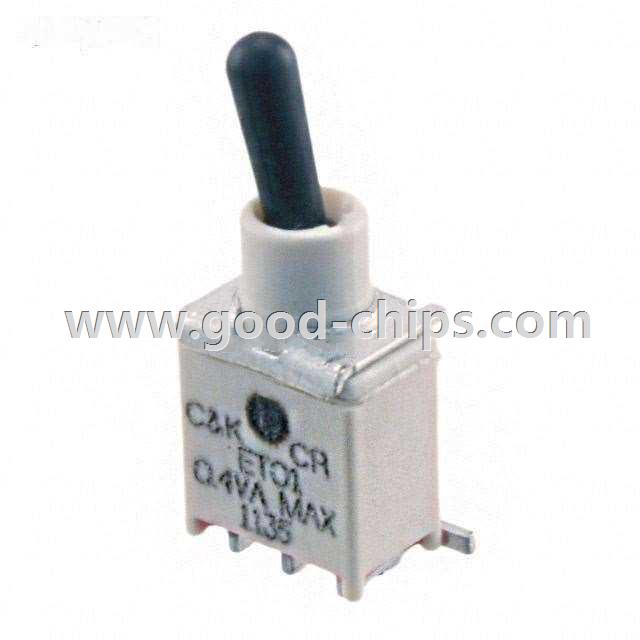

| Manufacturer Part Number: | ET01M3D1SAPE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Toggle Switches |
| Available Quantity: | 10210 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ET01M3D1SAPE Datasheet |
| Internal Part Number | 898-ET01M3D1SAPE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| PCN Design/Specification | ET Series Material 25/Jun/2010 | |
| Online Catalog | ET Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | C&K Components | |
| Series | ET | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Standard Round | |
| Actuator Length | 6.10mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | Unthreaded | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Black Antistatic Actuator | |
| Actuator Material | Polyamide (PA46), Nylon 4/6 | |
| Electrical Life | 60,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ET01M3D1SAPE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ET01M3D1SAPE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ET01M3D1SAPE is new and unused, you can buy ET01M3D1SAPE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ET01M3D1SAPE.
