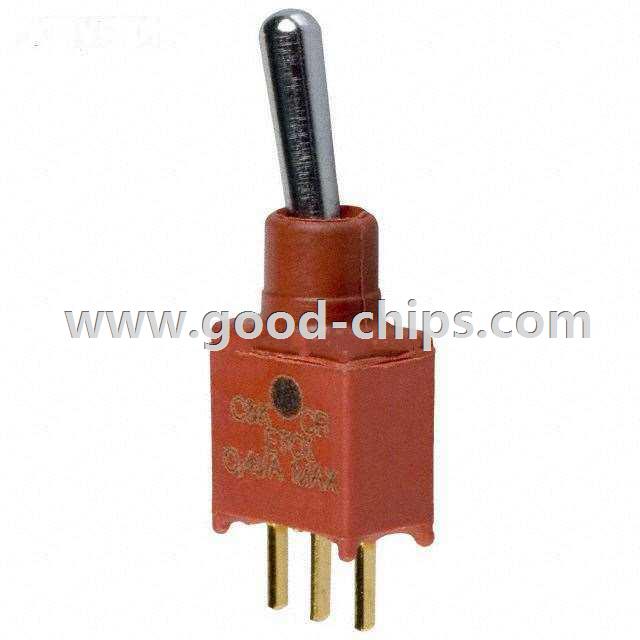

ET01LD1CBE

ET01LD1CBE
Manufacturer Part Number:ET01LD1CBE
Manufacturer:
Product Category:Toggle Switches
Available Quantity:10745 Pieces
Unit Price:Quote by Email
Description:Toggle Switch SPDT Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: ET01LD1CBE Datasheet
ET01LD1CBE´s Parameters
Internal Part Number898-ET01LD1CBE
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSealed Switch – Part 1
Sealed Switch – Part 2
Sealed Switch – Part 3
Sealed Switch – Part 4
Introduction to Electromechanical Switches
PCN Design/SpecificationET Series Material 25/Jun/2010
Online Catalog ET Series
CategorySwitches
FamilyToggle Switches
ManufacturerC&K Components
SeriesET
PackagingBulk
Part StatusActive
CircuitSPDT
Switch FunctionOn-On
Current Rating0.4VA (AC/DC)
Voltage Rating - AC20V
Voltage Rating - DC20V
Actuator TypeStandard Round
Actuator Length8.13mm
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (Nominal)-
Mounting TypeThrough Hole
Termination StylePC Pin
Panel Cutout Dimensions-
Bushing ThreadUnthreaded
Ingress ProtectionIP57 - Dust Protected, Waterproof
FeaturesEpoxy Sealed Terminals
Actuator MaterialBrass, Chrome Plated
Electrical Life60,000 Cycles
Operating Temperature-30°C ~ 85°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartET01LD1CBE
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

ET01LD1CBE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ET01LD1CBE is new and unused, you can buy ET01LD1CBE C&K Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for ET01LD1CBE.
