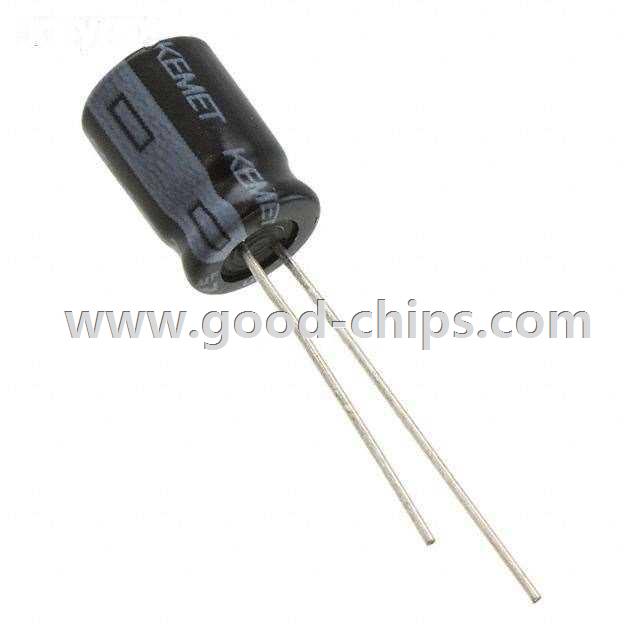

| Manufacturer Part Number: | ESW226M100AG3AA |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Aluminum Capacitors |
| Available Quantity: | 13018 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µF 100V Aluminum Capacitors Radial, Can 680 mOhm @ 100kHz 4000 Hrs @ 105°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESW226M100AG3AA Datasheet |
| Internal Part Number | 898-ESW226M100AG3AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Capacitor Basics- Typical Uses for Capacitors Specifying Electrolytic Capacitors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ESW Series | |
| Category | Capacitors | |
| Family | Aluminum Capacitors | |
| Manufacturer | Kemet | |
| Series | ESW | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 22µF | |
| Tolerance | ±20% | |
| Voltage Rating | 100V | |
| ESR (Equivalent Series Resistance) | 680 mOhm @ 100kHz | |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | |
| Operating Temperature | -40°C ~ 105°C | |
| Polarization | Polar | |
| Applications | General Purpose | |
| Ripple Current | 96.6mA @ 120Hz | |
| Impedance | 680 mOhm | |
| Lead Spacing | 0.138" (3.50mm) | |
| Size / Dimension | 0.315" Dia (8.00mm) | |
| Height - Seated (Max) | 0.492" (12.50mm) | |
| Surface Mount Land Size | - | |
| Mounting Type | Through Hole | |
| Package / Case | Radial, Can | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESW226M100AG3AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESW226M100AG3AA is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of ESW226M100AG3AA is new and unused, you can buy ESW226M100AG3AA Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESW226M100AG3AA.
