Manufacturer Part Number: | ESDBV5V0AE2-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 5VWM 13VC 0201B |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ESDBV5V0AE2-TP Datasheet |
Internal Part Number | 898-ESDBV5V0AE2-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ESD Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 5V (Max) | |
Voltage - Breakdown (Min) | 5.6V | |
Voltage - Clamping (Max) @ Ipp | 13V | |
Current - Peak Pulse (10/1000µs) | 4A (8/20µs) | |
Power - Peak Pulse | 52W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | 2pF @ 1MHz | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

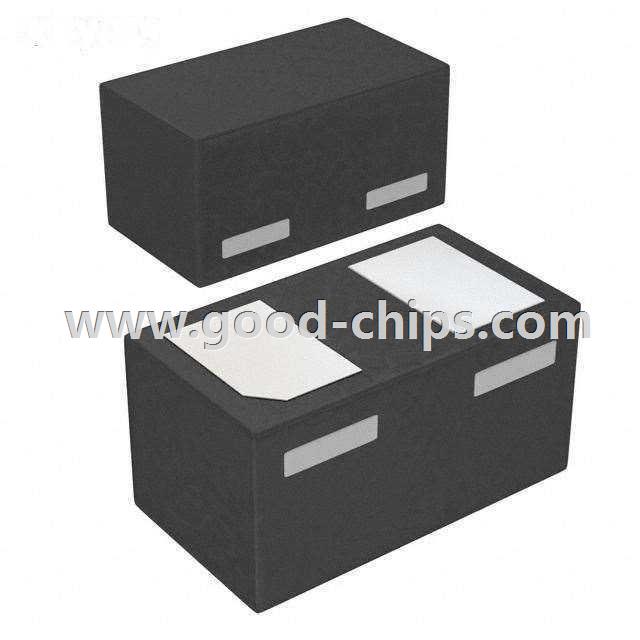

Package / Case | 0201 (0603 Metric) | |
Supplier Device Package | 0201-B | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ESDBV5V0AE2-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ESDBV5V0AE2-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of ESDBV5V0AE2-TP is new and unused, you can buy ESDBV5V0AE2-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESDBV5V0AE2-TP.
