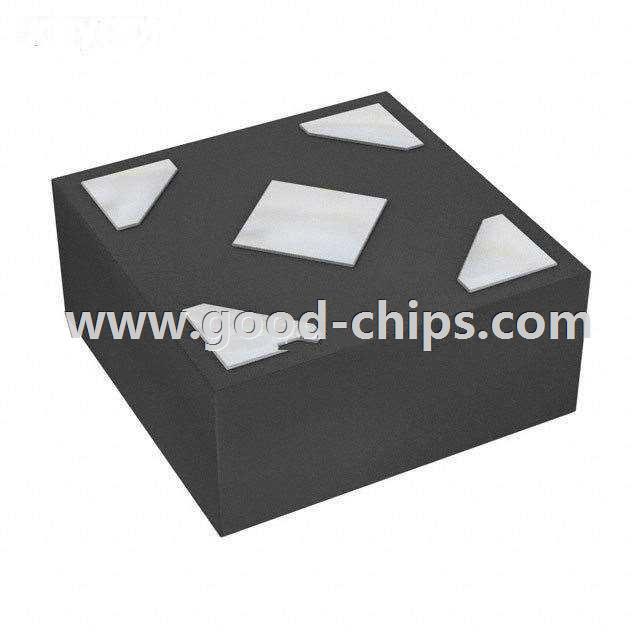

| Manufacturer Part Number: | ESDAVLC5-4BX4 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 3VWM 18VC ST0201 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESDAVLC5-4BX4 Datasheet |
| Internal Part Number | 898-ESDAVLC5-4BX4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | AN4022 Appl Note | |
| Online Catalog | Transil™ ESDA Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | STMicroelectronics | |
| Series | TRANSIL™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 3V | |
| Voltage - Breakdown (Min) | 5.5V | |
| Voltage - Clamping (Max) @ Ipp | 18V | |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
| Power - Peak Pulse | 30W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-Micro-X | |
| Supplier Device Package | 4-Micro-X | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESDAVLC5-4BX4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESDAVLC5-4BX4 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ESDAVLC5-4BX4 is new and unused, you can buy ESDAVLC5-4BX4 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESDAVLC5-4BX4.
